Zaccaria Galaxia Maintenance 2022

02/06/2022 - Northwest Pinball and Arcade Show (2022)

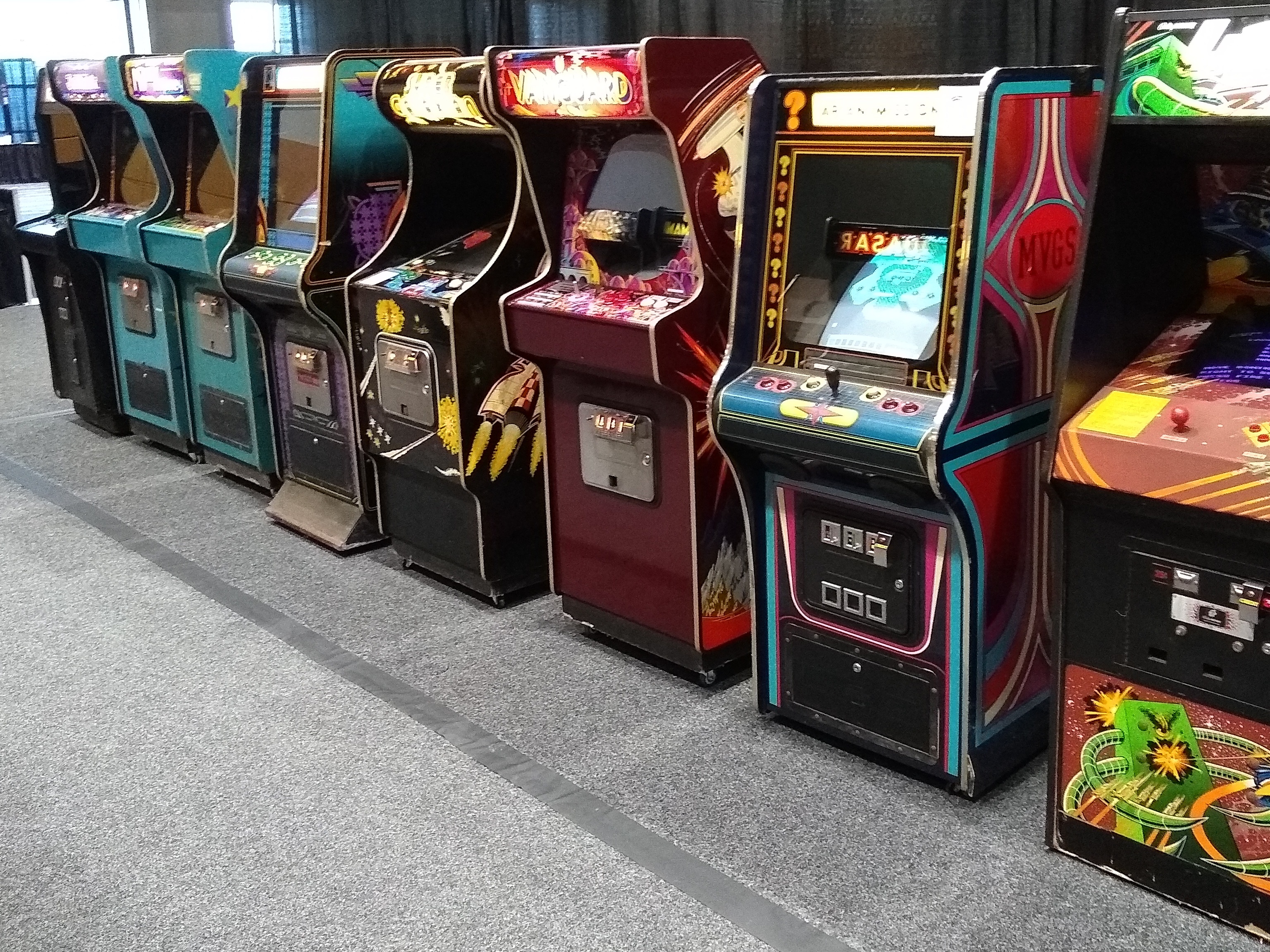

Zaccaria games at the Northwest Pinball and Arcade Show

After initial setup the game ran for a little while but then no longer booted. Swapping in the spare game PCB resulted in the same - still no boot. Since the Galaxia game PCB uses 2708 EPROMs with +5V, -5V and +12V supplies I suspected there may be power issue on the +12V or -5V. A meter confirmed that the -5V was low at -1V. Fitting the spare 1B1126 regulator PCB brought the game back to life.

Super Galaxian graphics corruption

Show day 2 encountered graphics problems. It was already running on the spare game PCB but both game PCBs had developed graphics issues :(

17/07/2022 - 1B1126 regulator PCB repair

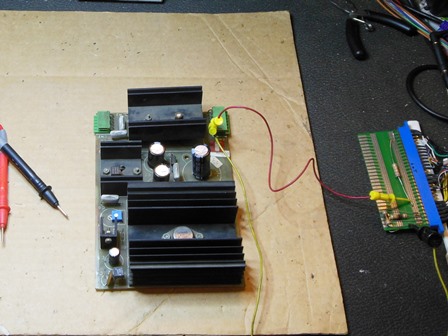

1B1126 regulator PCB on the bench

Regulator PCBs don't fail very often, it has large heat sinks and most cabinets (though not this one) have a fan blowing across it. I didn't have any special test harness setup for them and used a JAMMA power dummy load board and a couple of test leads to hook up the +12V DC lines to the AC input. Polarity doesn't matter - the bridge rectifier adapts it and I tested both polarities to make sure the bridge rectifier was working. The DC input to the 7905 measured -10.73 VDC and output -1.72 VDC. I suspected a bad 7905 and replacing it fixed the -5V supply.

22/07/2022 - Game PCB #004 repair

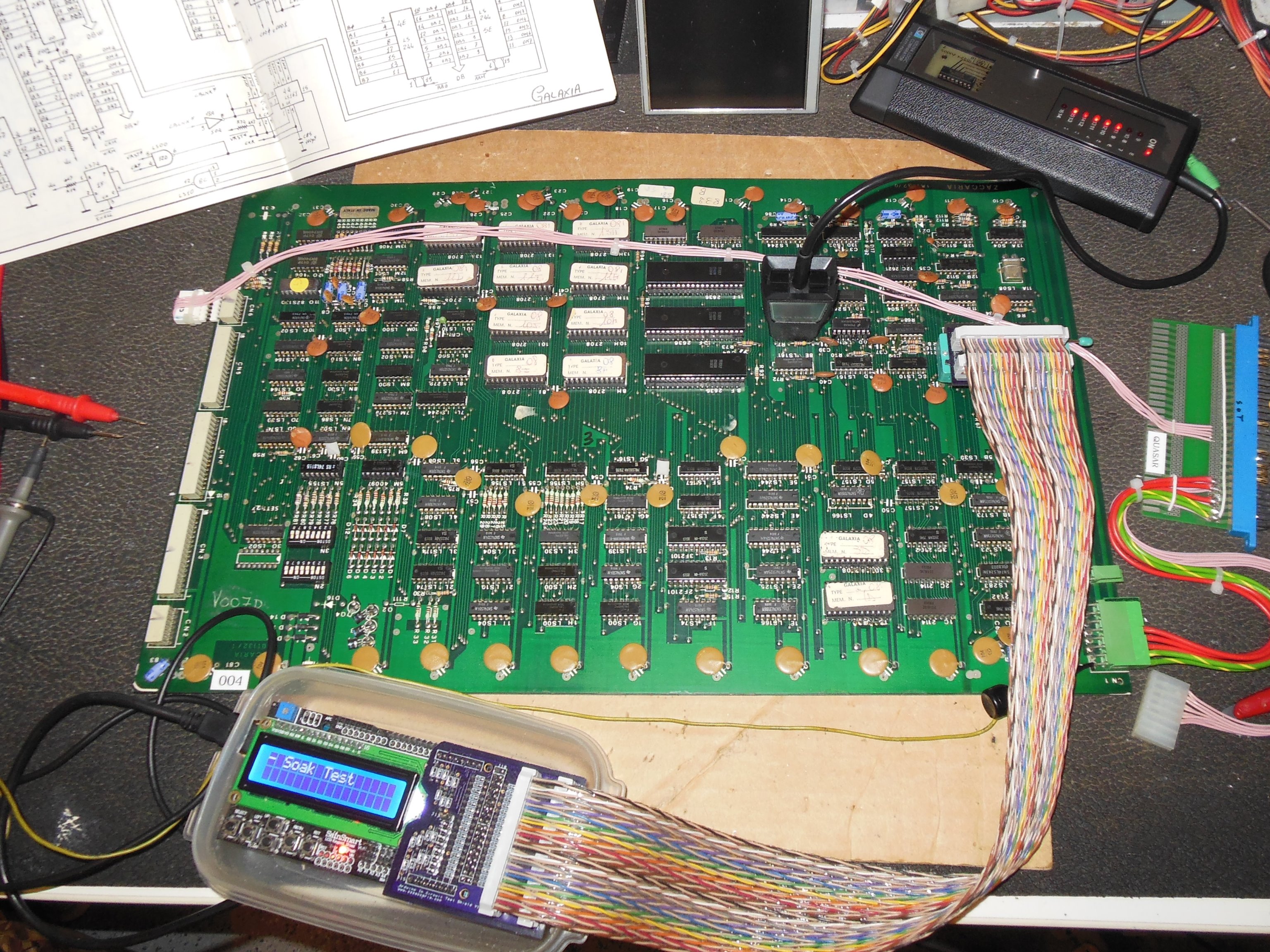

Galaxia bad graphics Galaxia PCB with Arduino ICT

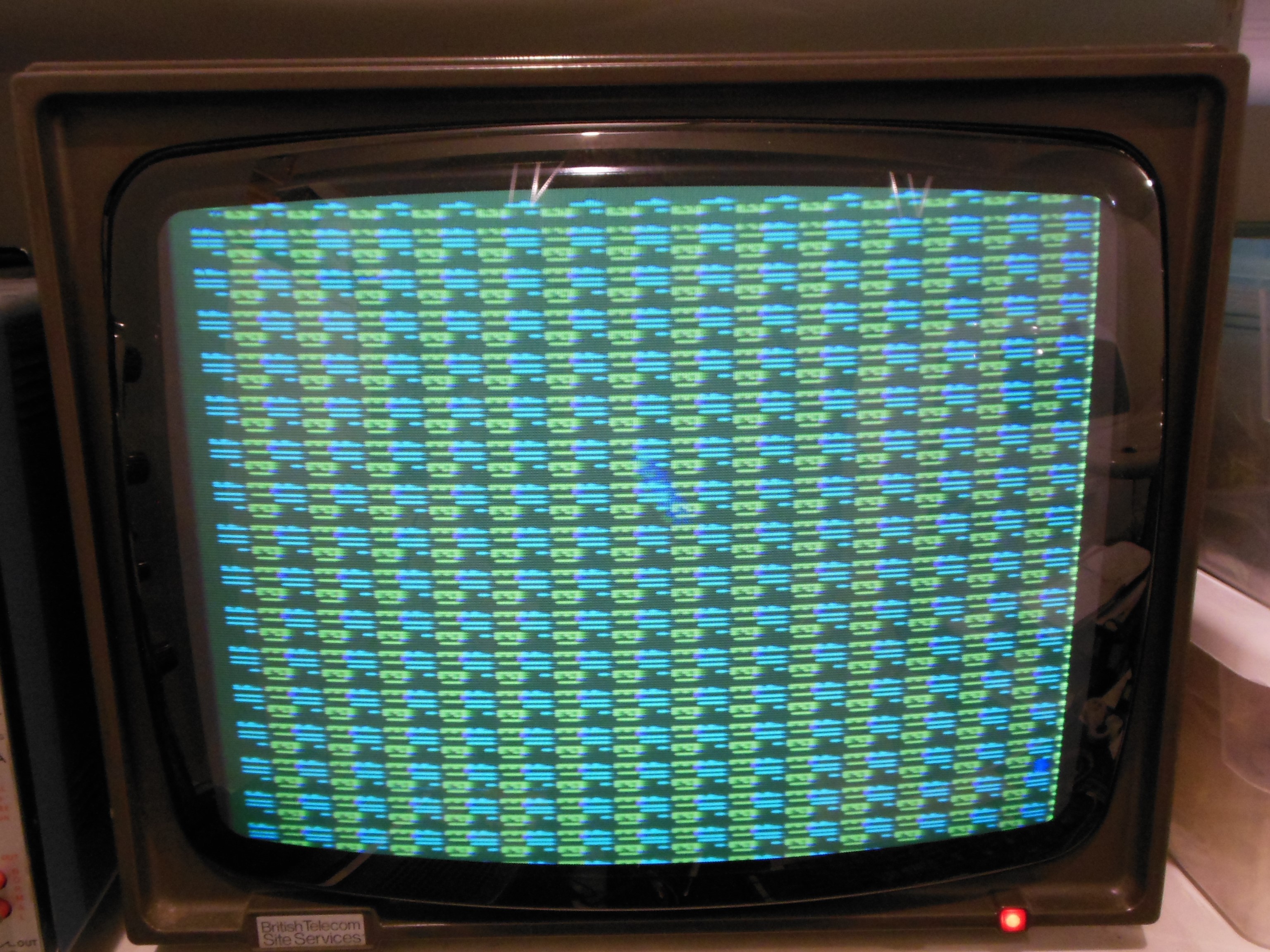

On the bench the game PCB displayed repeated characters across the whole screen. Attaching the Arduino ICT found that both ROM and RAM tested OK. Using "RAM Write All AD" to set a known pattern of address == data across all the RAM and inspecting IC 3D (2708) found:


There wasn't a lot of action on the character address lines coming from IC 1C (2114). Mapping out IC 1C:

The address inputs had a lot of idle signals, tracing some of those back to IC 4C (LS157):

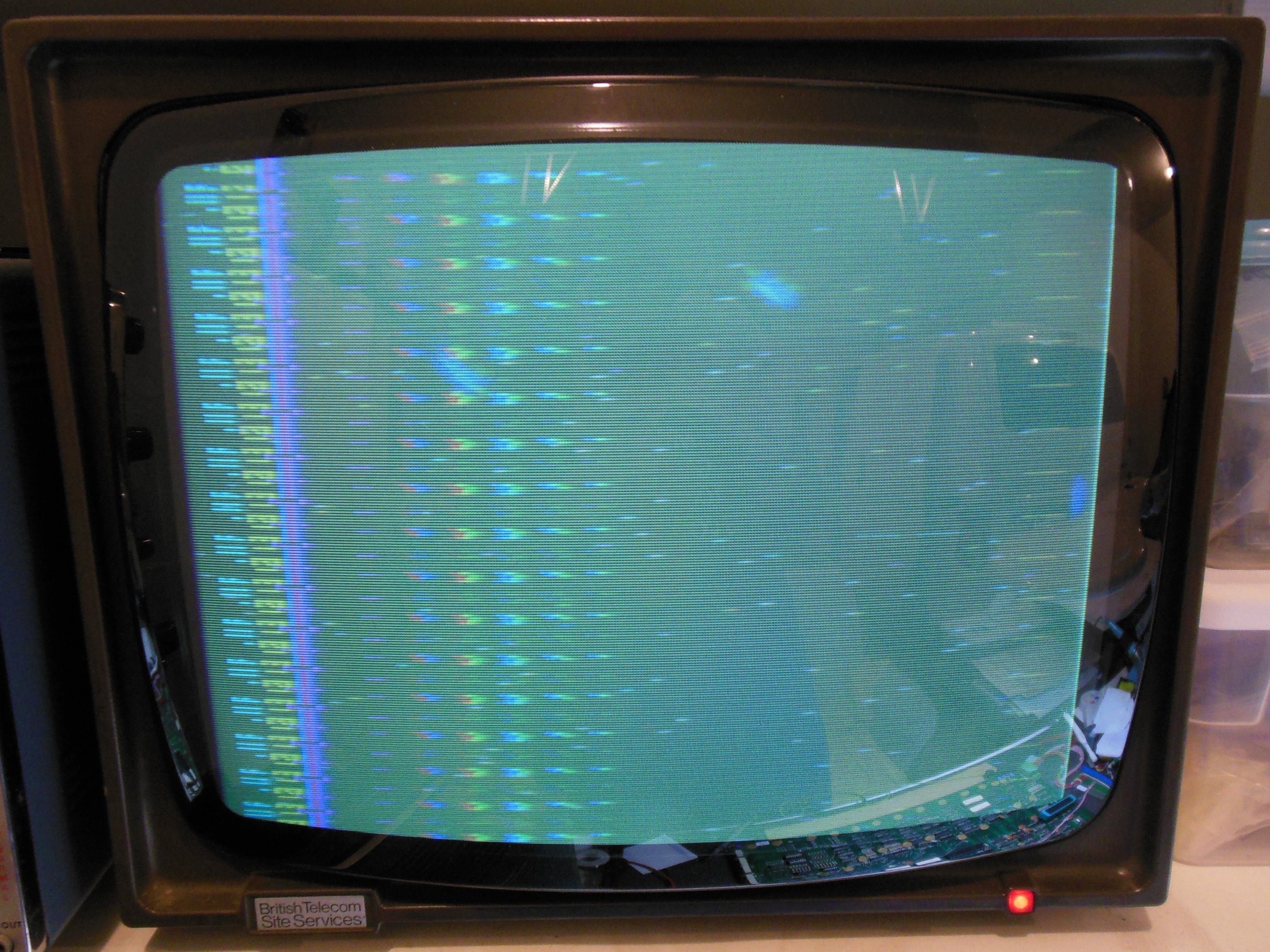

Working back to IC 8D (LS161) output pins 11,12,13,14 were all active but IC 10D (LS161) output pins 11,12,13,14 were all idle low. I suspected IC 10D (LS161) was bad and replacing it gave a display that was a lot better but still not correct.

Galaxia bad graphics Galaxia fixed graphics

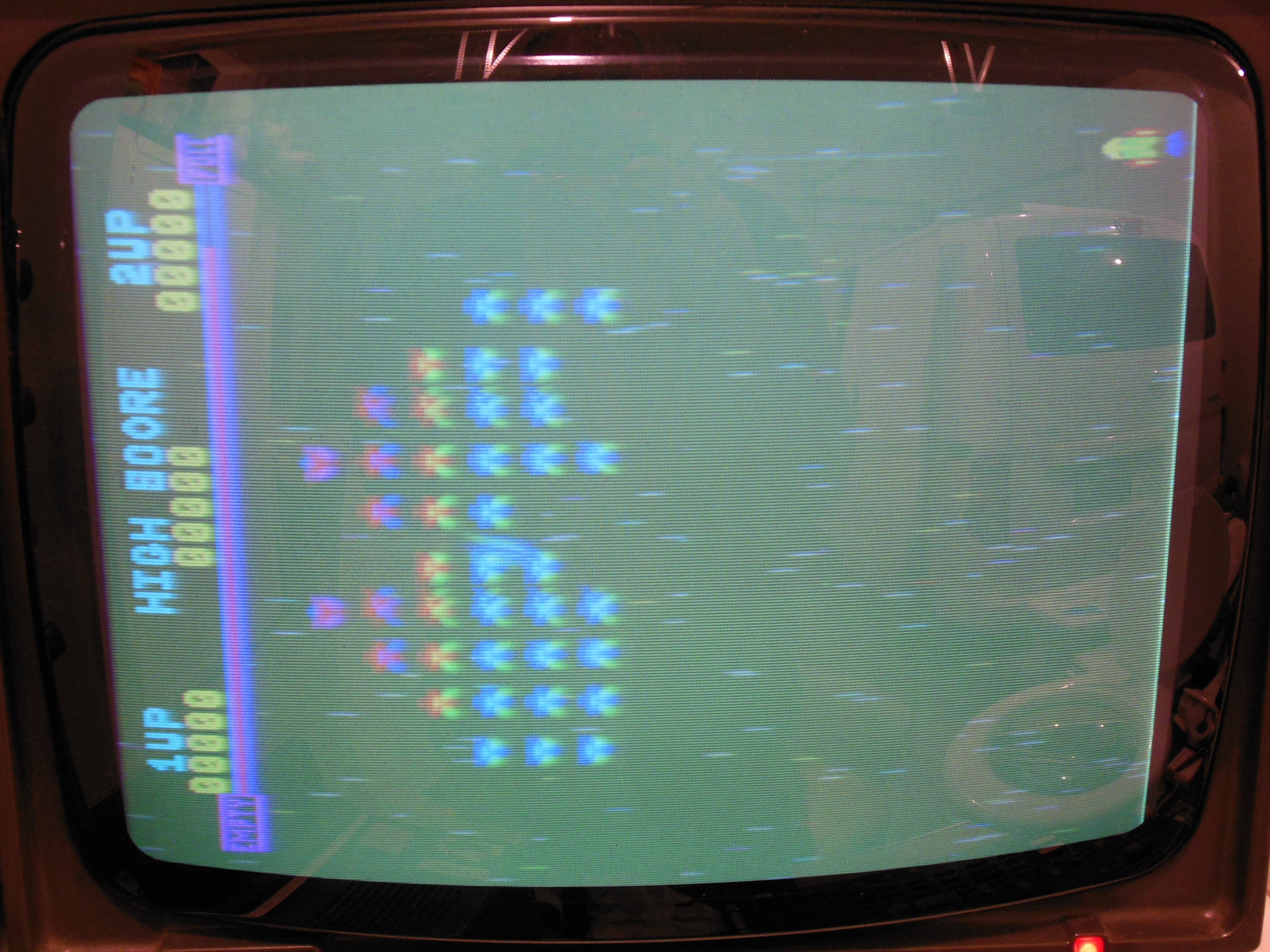

Returning to IC 1C (2114) didn't reveal anything obviously wrong on the scope, even with "RAM Write All AD". The counter ICs 8D,10D,8E,10E outputs were all active. Still suspecting another Signetics 74LS161 was bad, all were tested with an HP 10529A logic comparator that flagged IC 10E (LS161) as bad. Replacing it completely fixed the graphics.

01/08/2022 - Game PCB #001 repair

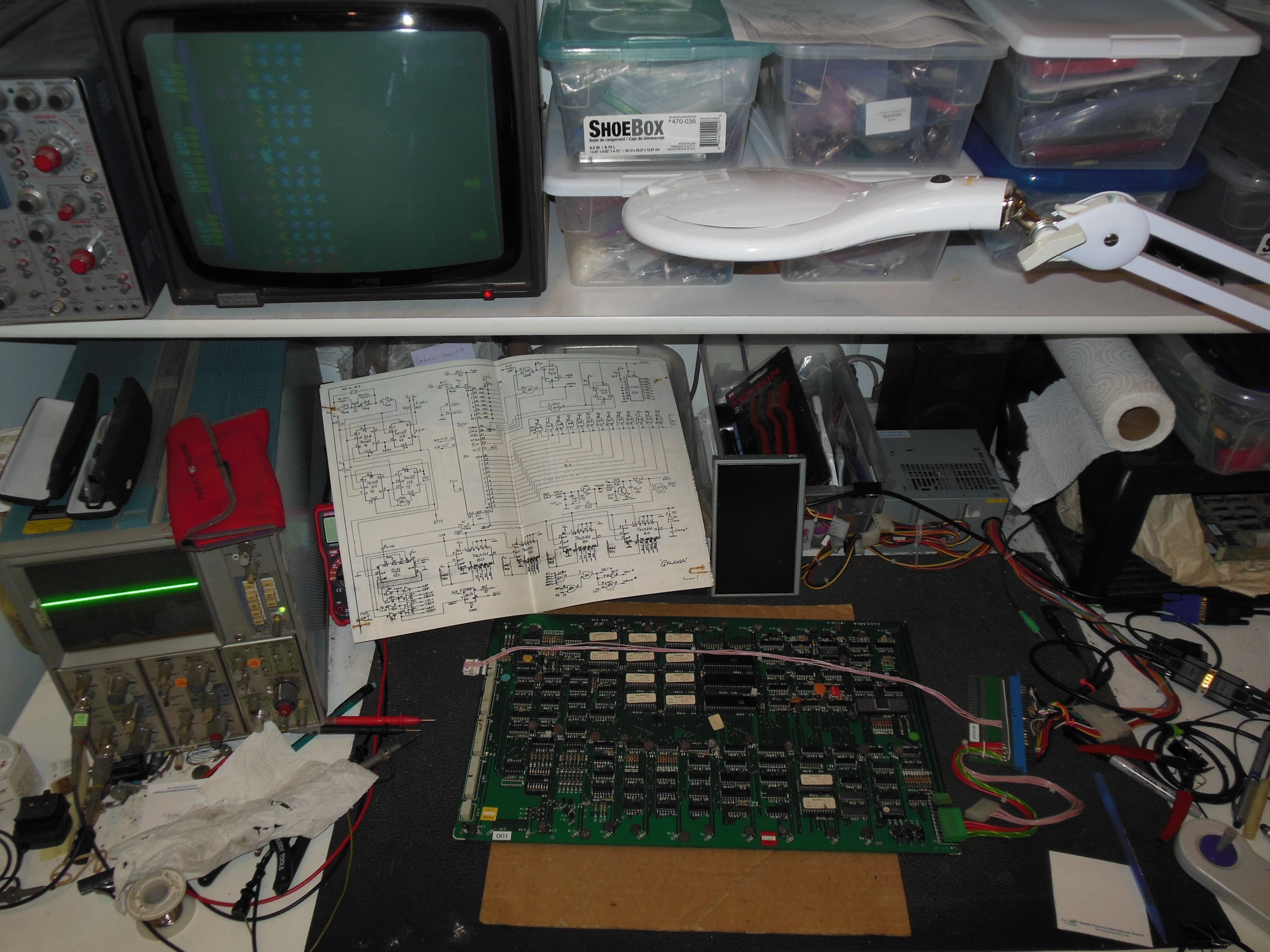

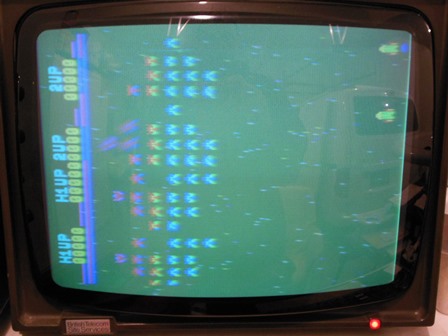

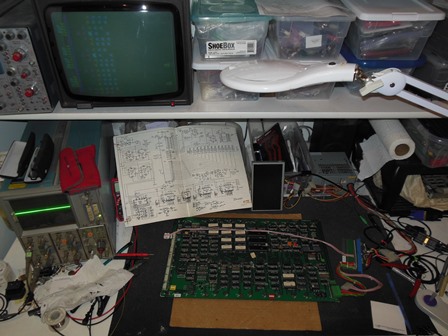

Zaccaria Galaxia PCB on the bench Galaxia bad graphics

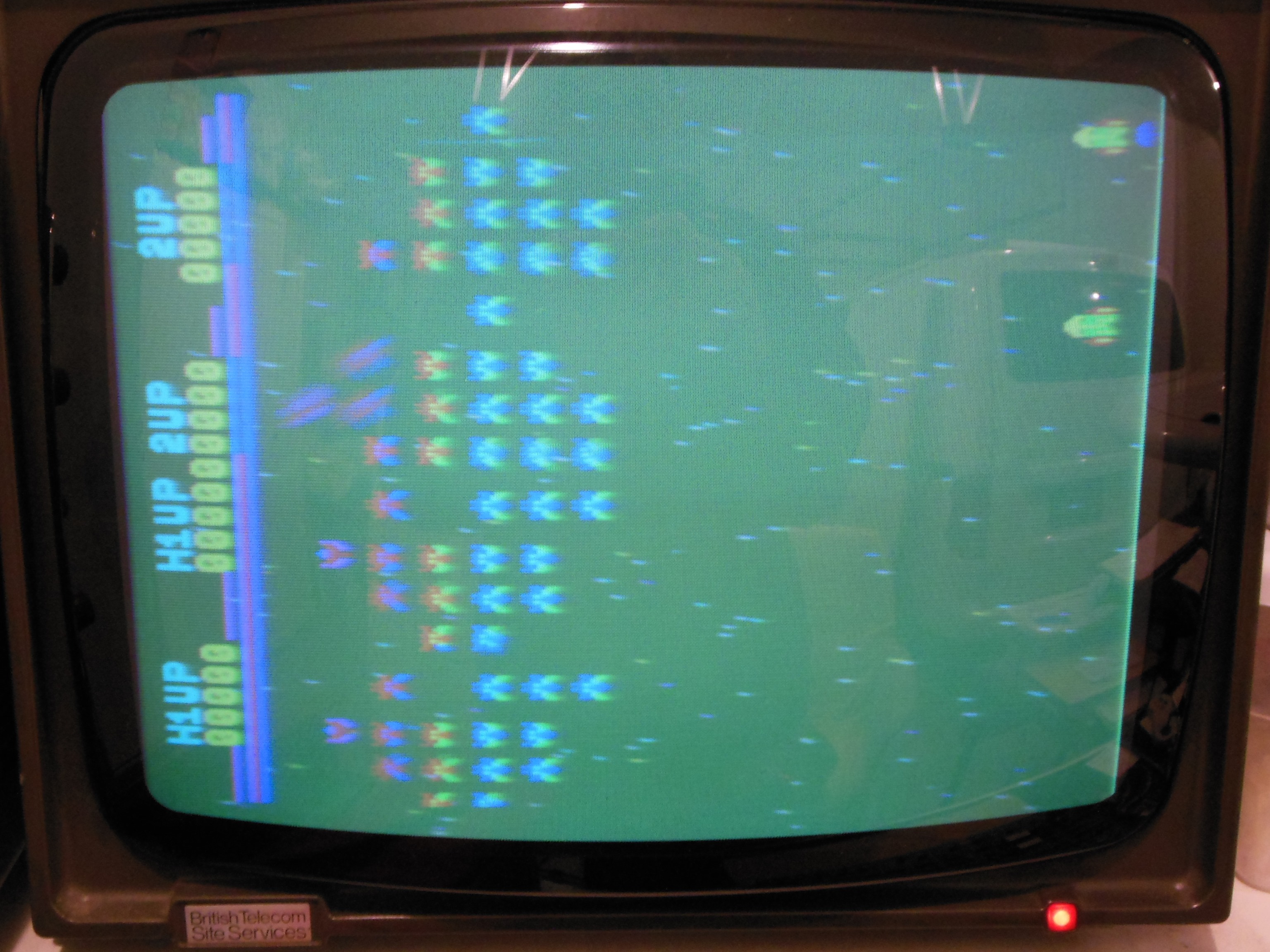

This Galaxia PCB had very similar graphics issues to #004 fixed earlier - doubled screen. Jumping in with the HP comparator on ICs 8D,10D,8E,10E (LS161) didn't find any issues this time. The game display showed the missiles were working properly (not doubled) confirming that the problem was slightly further downstream in the character graphics. Checking IC 1C (2114) discovered that the scope lead touching pin 16 (A8) affected the graphics and the scope showed a poor noisy signal. Tracing this back to IC 5C (LS157) output pin 4 found the corresponding inputs looking OK. I suspected IC 5C was bad and a quick piggyback check fixed the graphics. Replacing IC 5C (LS157) fixed the game.

06/05/2023 - Cabinet fan

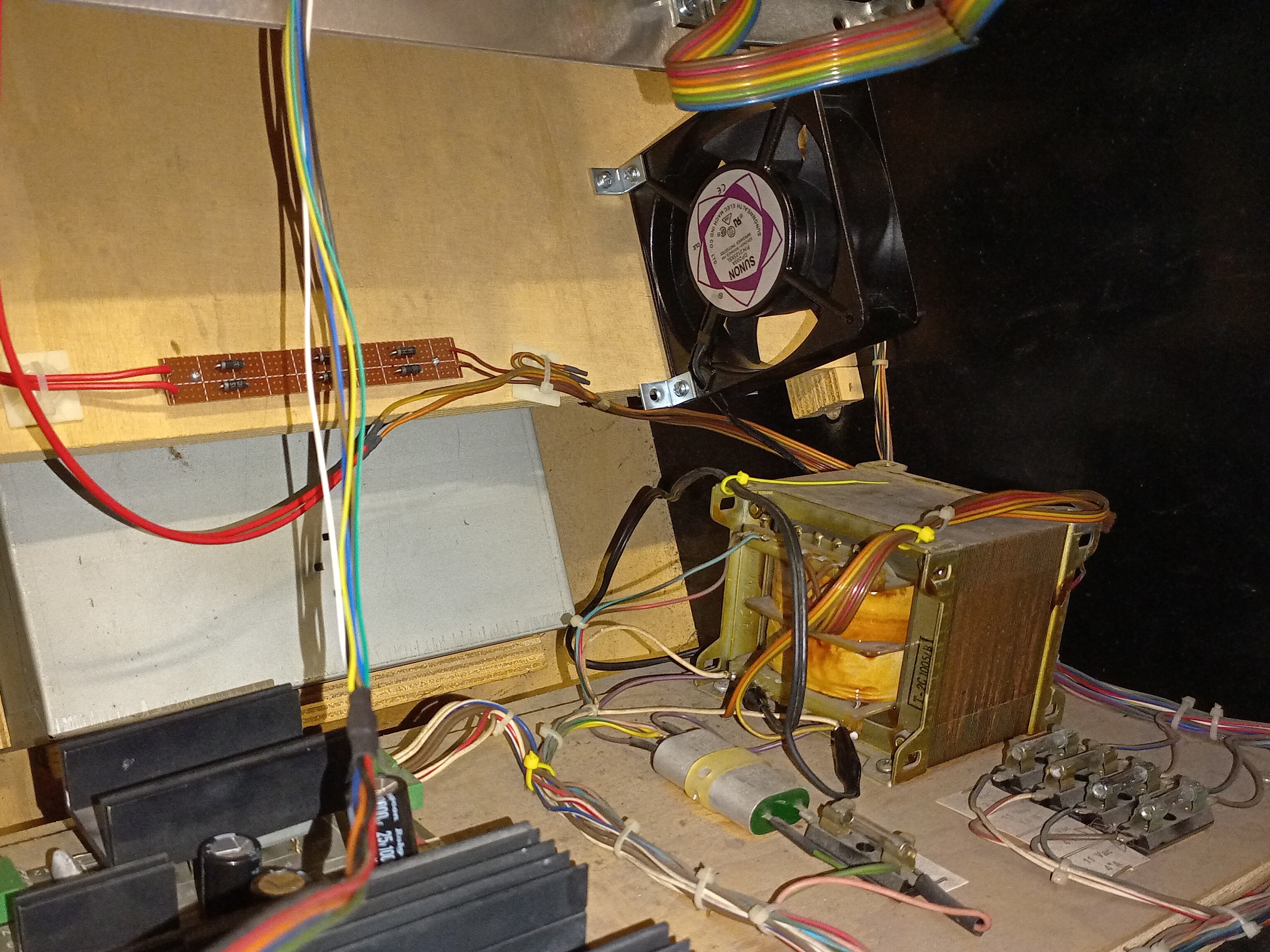

Fan installed in Super Galaxians

Temporary fan assembles were built for all three cabinets in this style (Astro Wars, Super Galaxian & Sea Scare), described on the Astro Wars maintenance page.
