Zaccaria/IGR Armada Game PCB Repair
Background
One incomplete instance of a game PCB titled "Armada" had previously been found and was
thought to be a bootleg of Zaccaria Sea Battle. Some of the ROMs were missing, including
the program ROMs, so it was unknown what the game really was. A fellow collector, Bela,
encountered another complete IGR Armada game PCB that I was able to acquire to both archive
a complete set of ROMs that were submitted to MAME and repair to running state.
13/07/2023 - ROM Dump
The Zaccaria/IGR Armada ROM set was dumped and submitted to MAME.
Zaccaria/IGR Armada ROM Set (25KB).
14/07/2023 - Armada game PCB PA20230714 repair

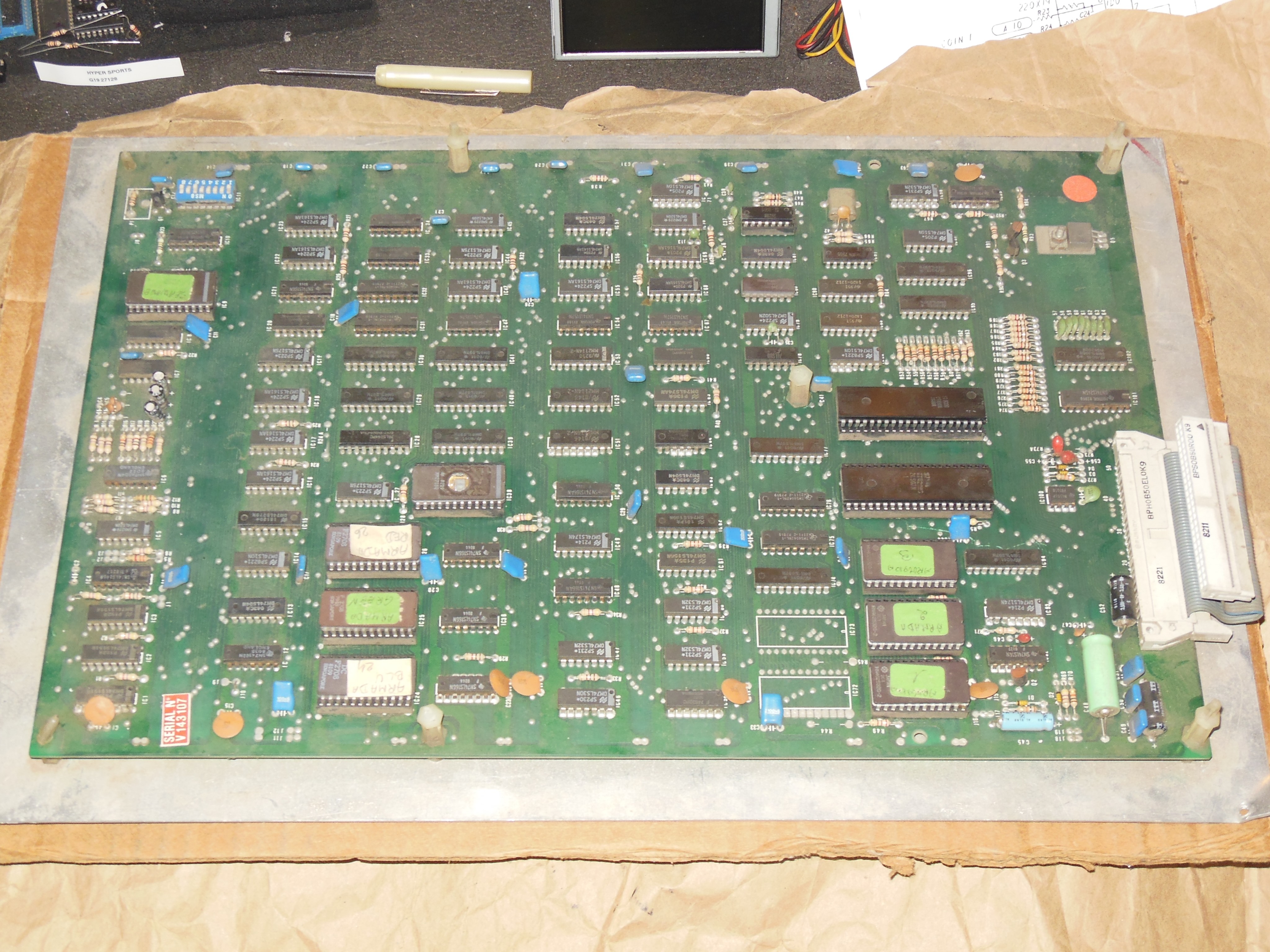

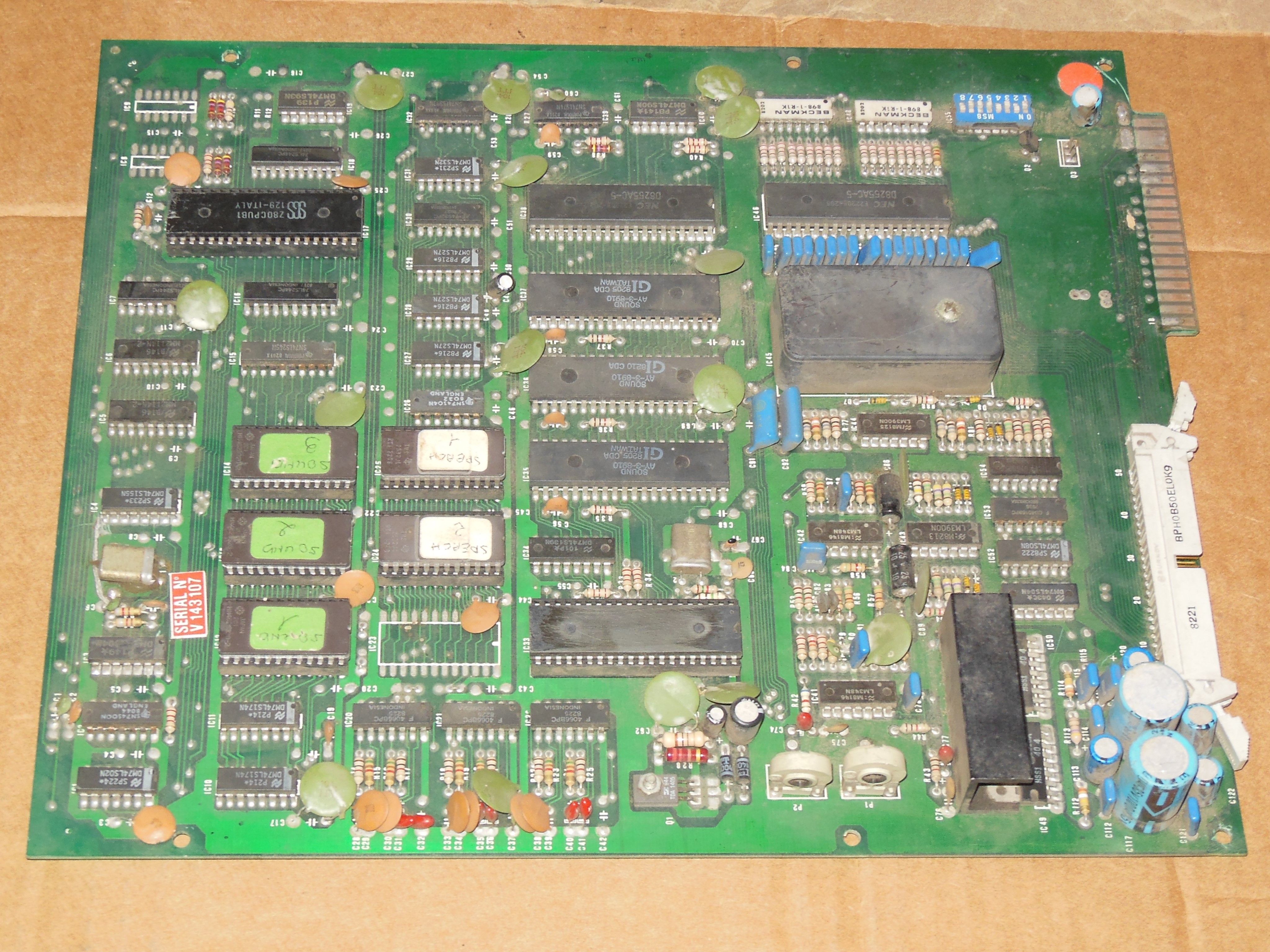

The physical condition of the PCB set was very good and complete. The main PCB was very
similar to the Sea Battle main PCB and the sound PCB very similar to the Scorpion sound
PCB, also IGR. There were twin pots and twin amplifiers, hinting that it could be a stereo
sound game.

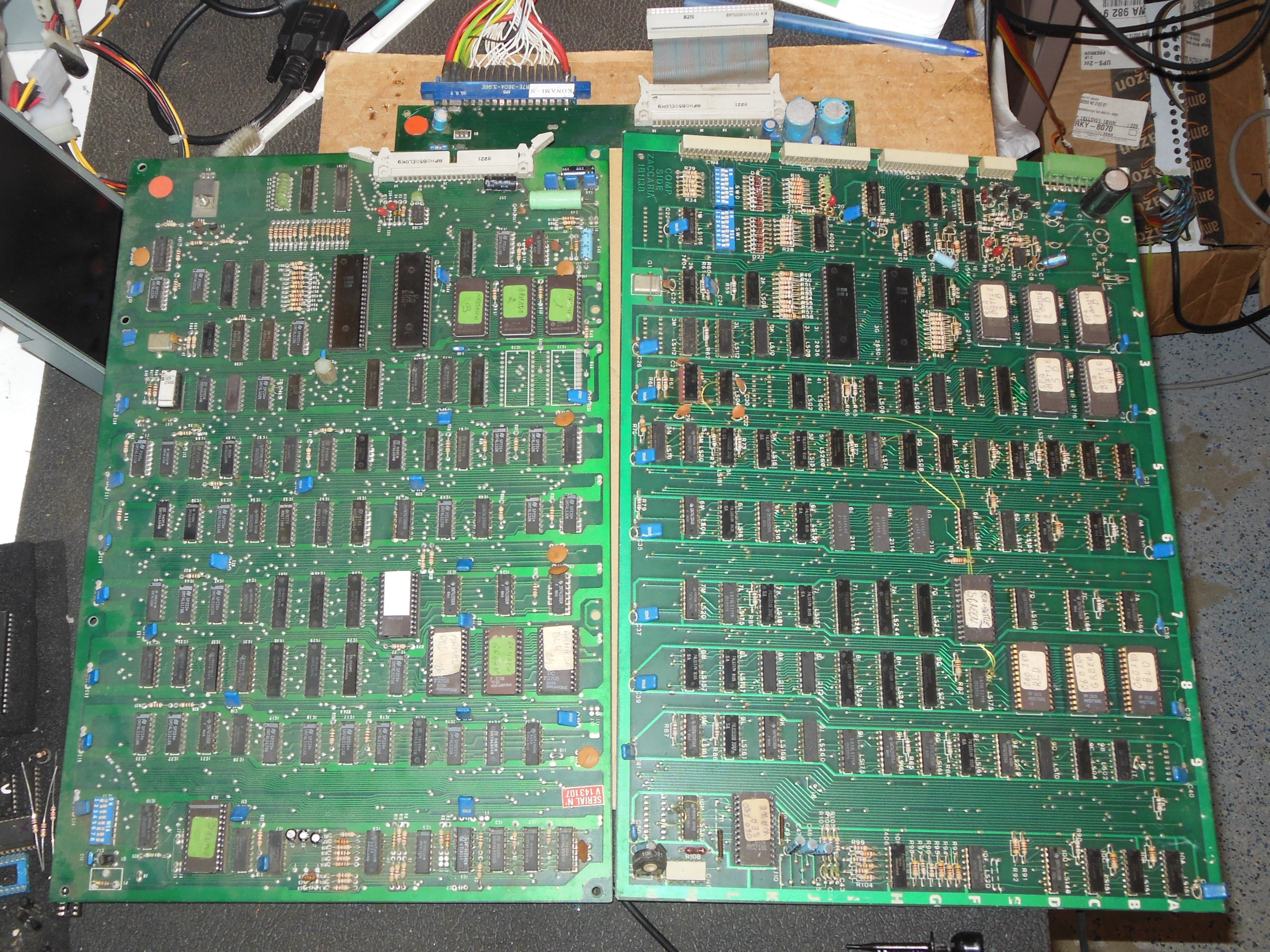

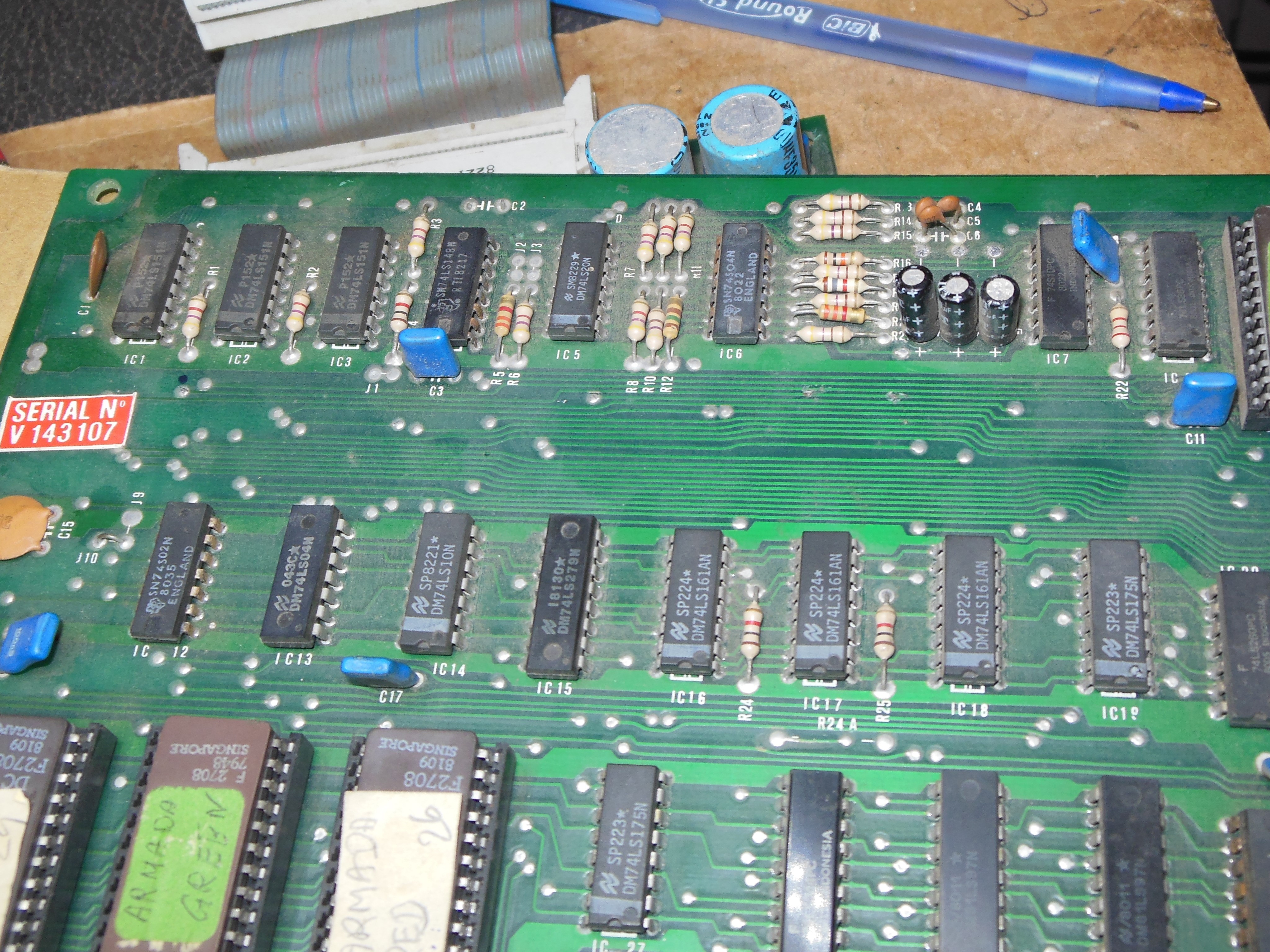

A side-by-side comparison illustrated the near identical hardware between Armada and
it's predecessor Sea Battle. The Sea Battle matrix input & DIP switches had been removed from
Armada to instead use conventional inputs via the 8255 on the top sound PCB following the
same design as the Scramble-derived Scorpion platform.
Initial investigation with a multimeter found the power pinout matching the Konami
standard. On first power on there was no video or sound but there was speaker hiss. Checking
the supply voltages at IC 24 (2708) confirmed all three power voltages were correct. The scope
showed active video sync output at IC 82 (2621) pin 1 but no active colour outputs. Checking
IC 86 (2650) found:
- pin 38 - active - CLK
- pin 23 - idle lo - ~R/W
- pin 24 - active - OPREQ
- pin 26 - active - DB7
- pin 27 - active - DB6
- pin 28 - active - DB5
- pin 29 - active - DB4
- pin 30 - active - DB3
- pin 31 - active - DB2
- pin 32 - active - DB1
- pin 33 - active - DB0
The main CPU was active but there was no response to coin.
Attention switched to the lack of any video output. Checking IC 24 (2708) "blue" found
both address & data bus idle. Suspecting a problem with the video timing circuit, checking
IC 82 (2621) found:
- pin 1 - active
- pin 2 - idle lo
- pin 3 - active with poor level overtones
- pin 4 - active
- pin 5 - active
- pin 6 - active
- pin 7 - idle lo - GND
- pin 8 - idle lo
- pin 9 - active
- pin 10 - active
- pin 11 - active
- pin 12 - active
- pin 13- active
- pin 14 - idle hi - VCC
IC 82 pin 2 was the VRST line that should have been active but showed as a marginal idle low
at ~0.7V. Replacing IC 82 (2621) didn't result any video display but there were now random
sounds being output and IC 24 address & data were active. The 2650 CPU reset line was also
now toggling with watchdog resets. A subsequent power cycle brought the game to life with
video, coin-up and sound all active (including the Scorpion "Thank You" speech on coin-up).

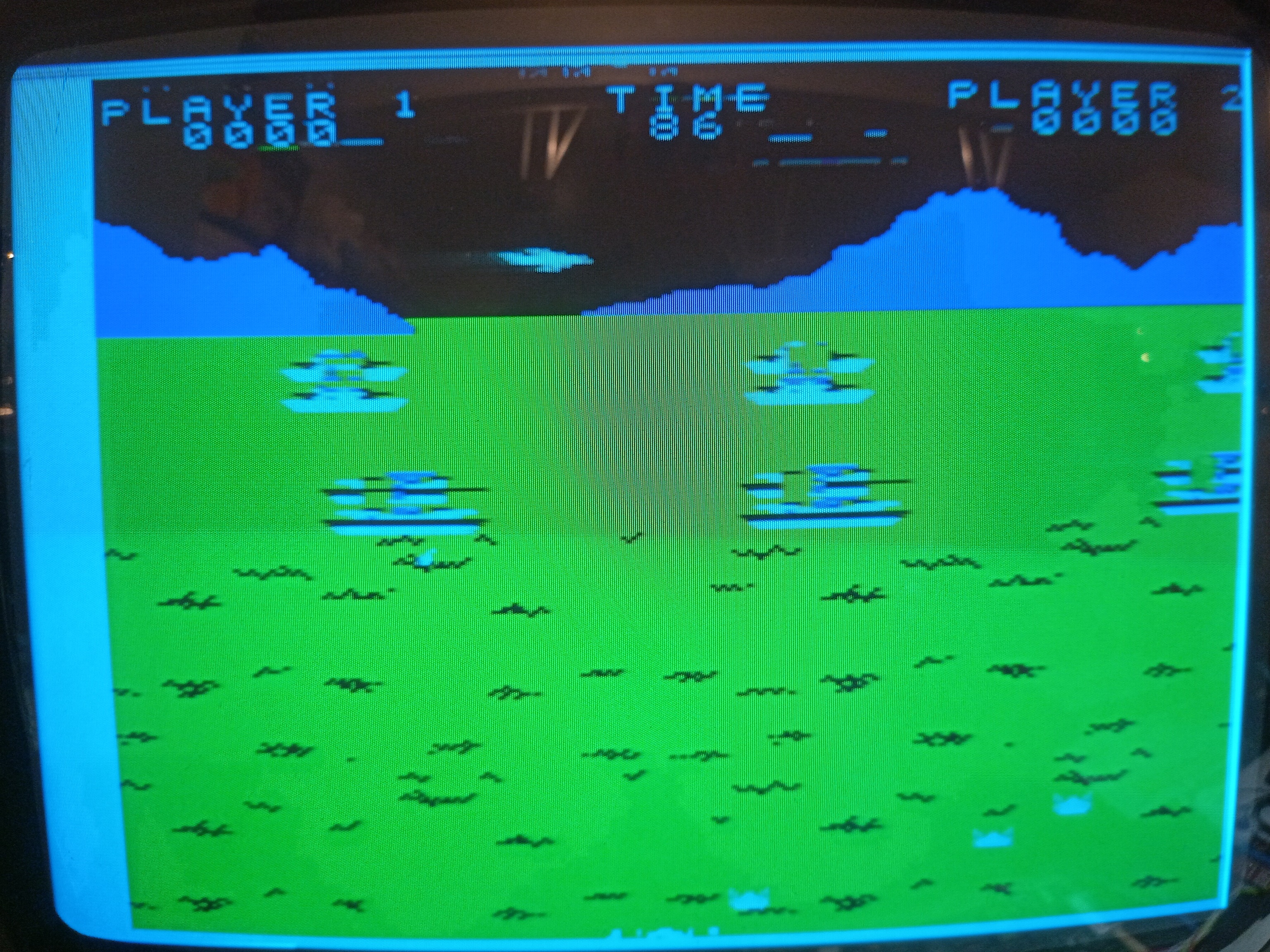

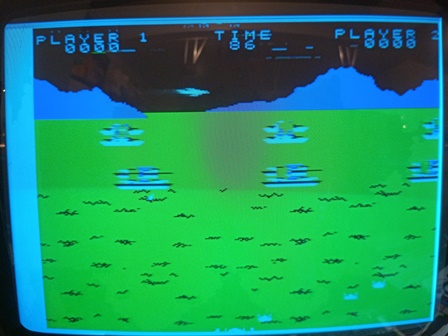

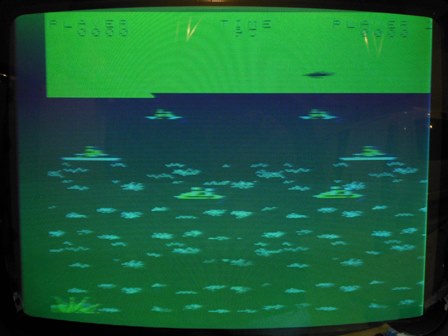

On the LCD monitor the video display was illegible. Switching to the CRT test monitor

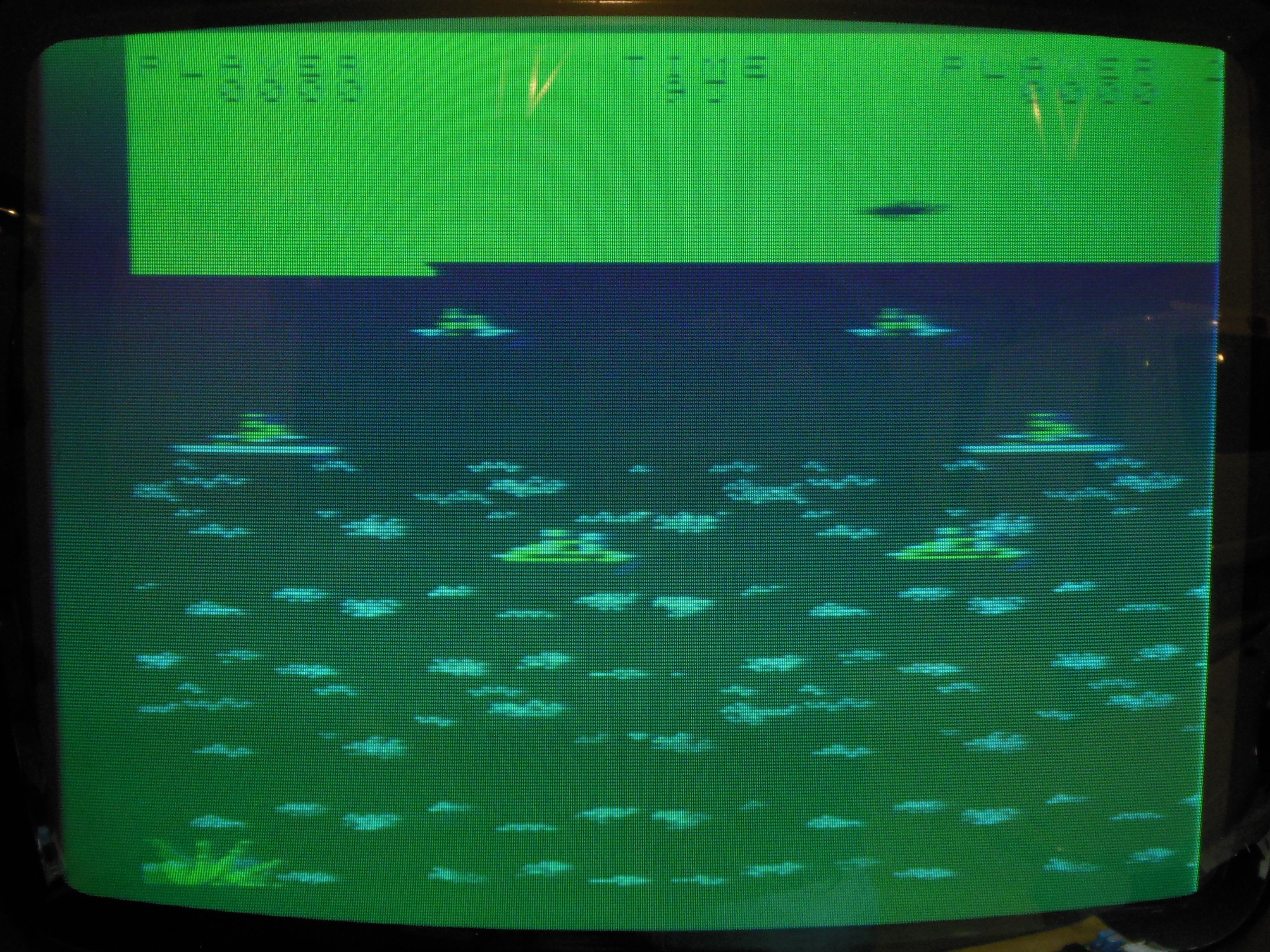

had a better display with a bad colours and a fault with the sprite display.
The game also appeared to play OK, however right and left were oddly reversed versus the
Konami standard pinout.
A scope confirmed the blue colour drive was missing from the edge connector video pin.
Working back to C7,C8,C9 using a video probe & scope found:
- C9 - blue - blank video - -0.3V -> +1.3v & floated down with scope lead
- C8 - green - active video - -1.3V -> +0.3V
- C7 - red - active video - -1.3V -> +0.3V

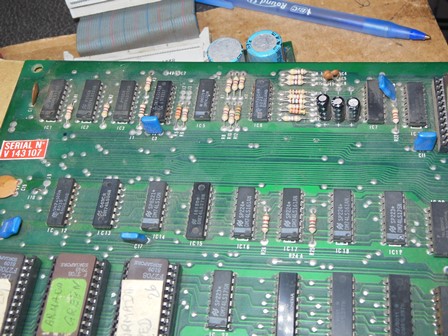

The signal at C9 didn't look correct and there was damage on the top of capacitor C9.
I didn't see any significant differences between the Sea Battle & Armada video drive circuits

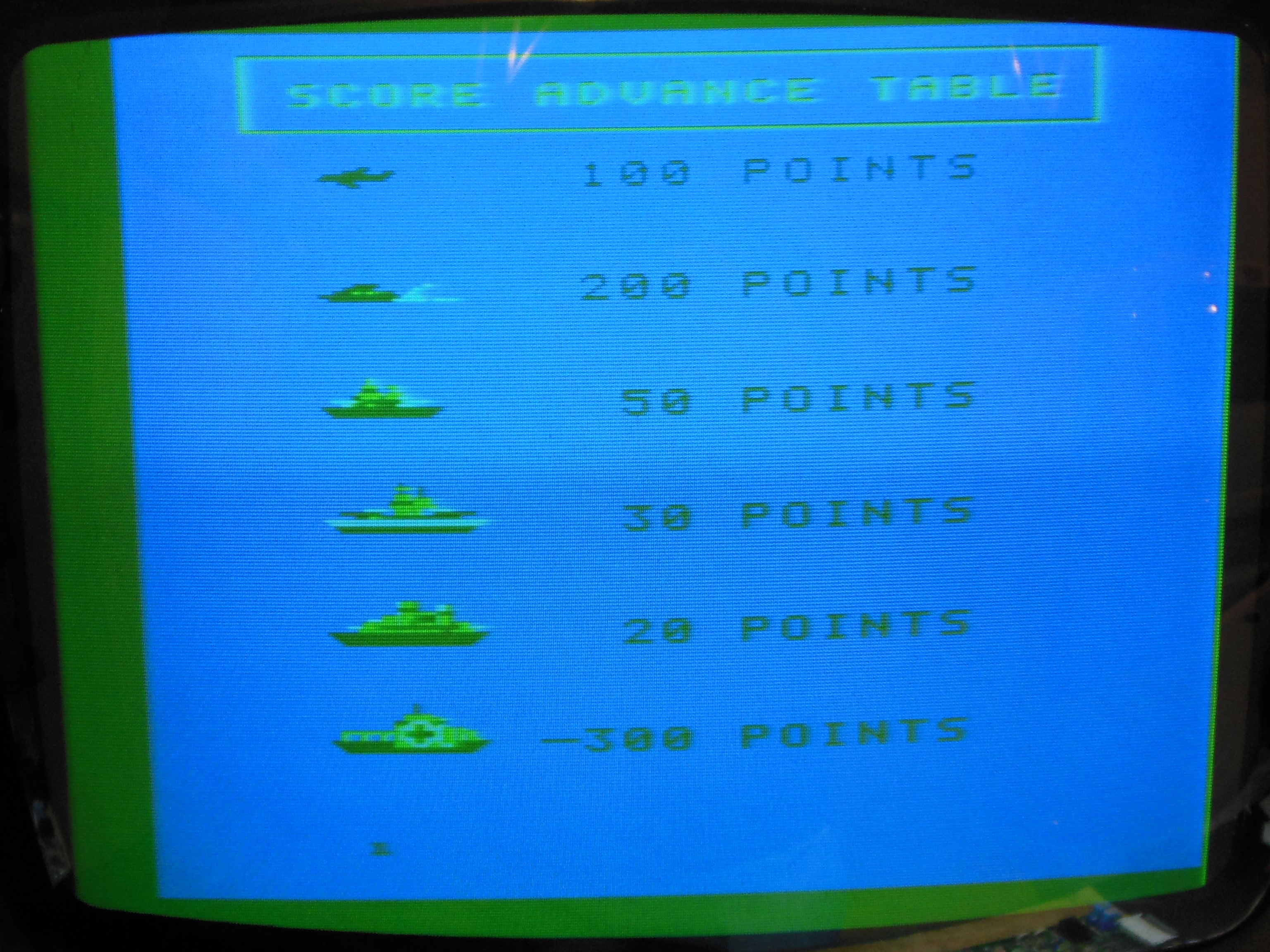

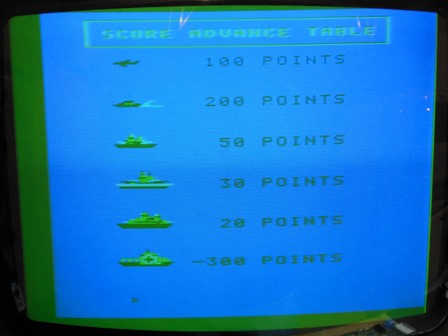

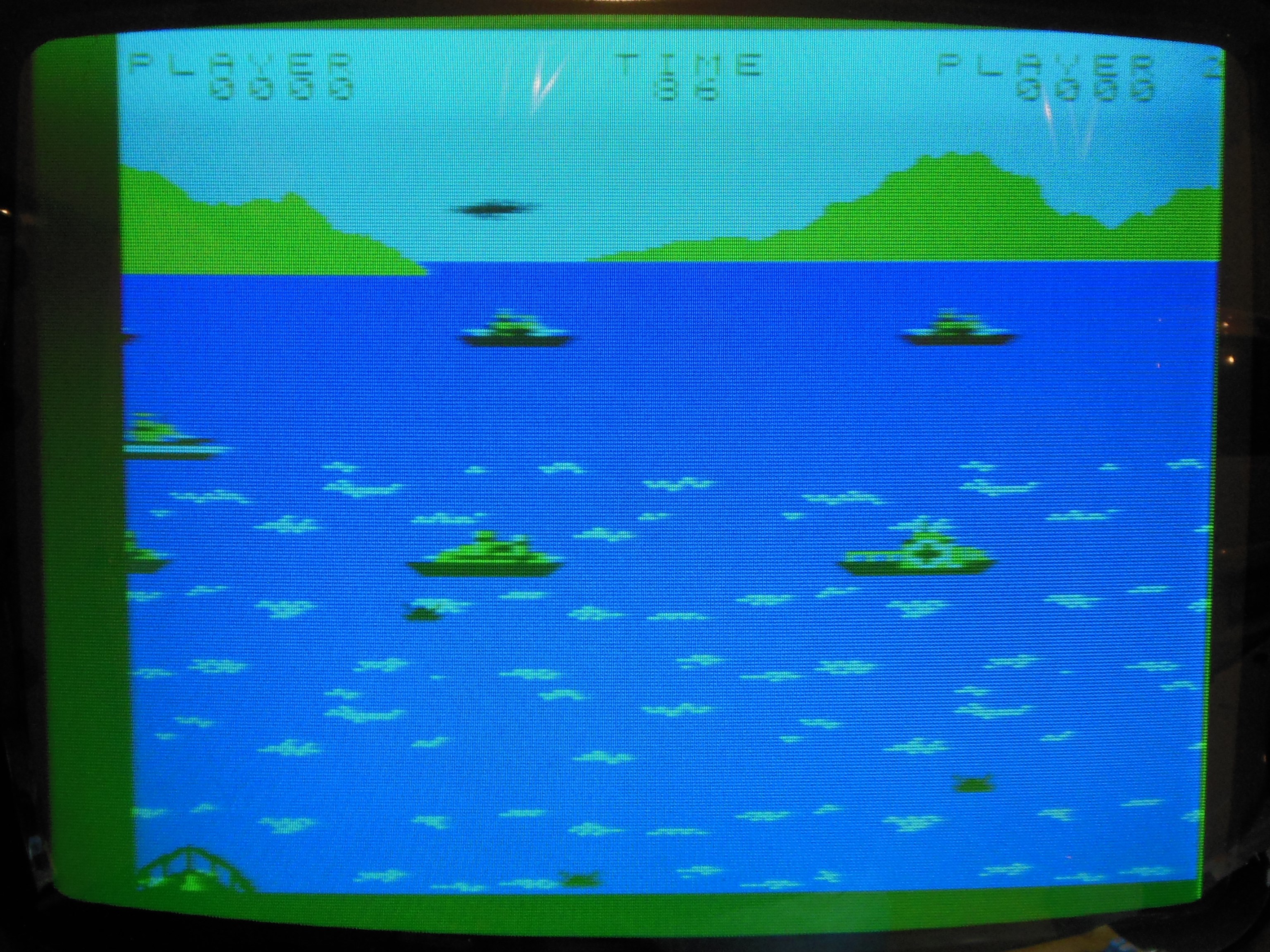

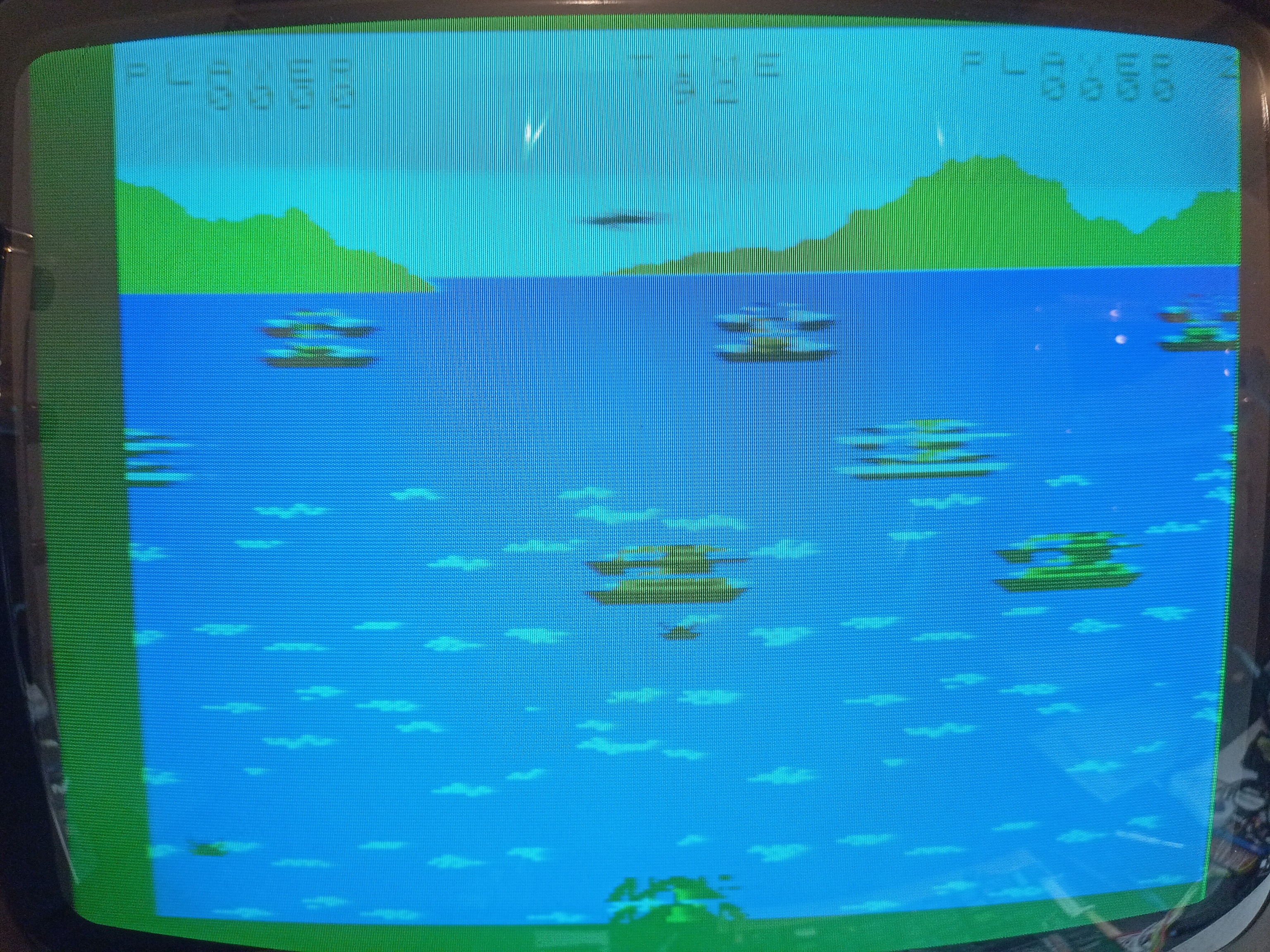

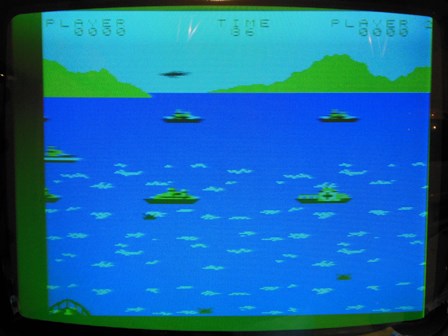

so I suspected the video output was inverted. Using inverted video displayed correct
colours (blue ocean, green land, and light blue sky).
14/07/2023 - Armada graphics repair

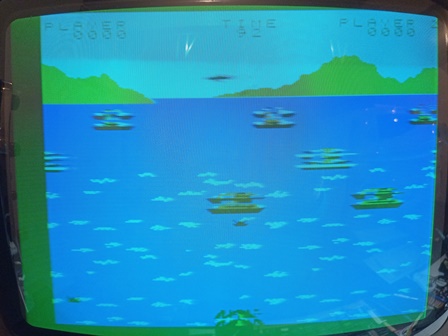

Moving on the sprite fault using a video probe starting with IC 24 (2708) found:
- pin 1 - active
- pin 2 - active
- pin 3 - active
- pin 4 - active
- pin 5 - intermittent poor 0.7V signal
- pin 6 - clock
- pin 7 - clock
- pin 8 - clock
- pin 9 - active
- pin 10 - active
- pin 11 - active
- pin 12 - GND
There were no schematics found for this game. Searching for the origin of pin 5 across
the whole PCB was unsuccessful after several attempts, and I suspected the track may be
open. Trying other pins as a potential hint on where pin 5 may originate found:
- IC 24 (2708) pin 8 -> IC 56 (LS161) pin 14
- IC 24 (2708) pin 7 -> IC 56 (LS161) pin 13
- IC 24 (2708) pin 6 -> IC 56 (LS161) pin 12
- IC 24 (2708) pin 5 -> ?
- IC 24 (2708) pin 4 -> IC 17 (LS161) pin 11
- IC 24 (2708) pin 3 -> IC 16 (LS161) pin 14
- IC 24 (2708) pin 2 -> IC 19 (LS175) pin 2 (Q)
- IC 24 (2708) pin 1 -> IC 19 (LS175) pin 7 (Q)
I suspected IC24 pin 5 as going to IC 56 pin 11 and noted that IC 56 had been replaced. Since
Armada was very similar to Sea Battle, a comparison found that IC 5D pin 5 routed to IC 6L
pin 11, equivalent to IC 56 pin 11 on Armada and confirming an open track. Visually
and meter tracing the track found the continuity lost between R1 VCC and the
top of IC 9 that was one long ~6" track. There were a couple of small blemishes on it near

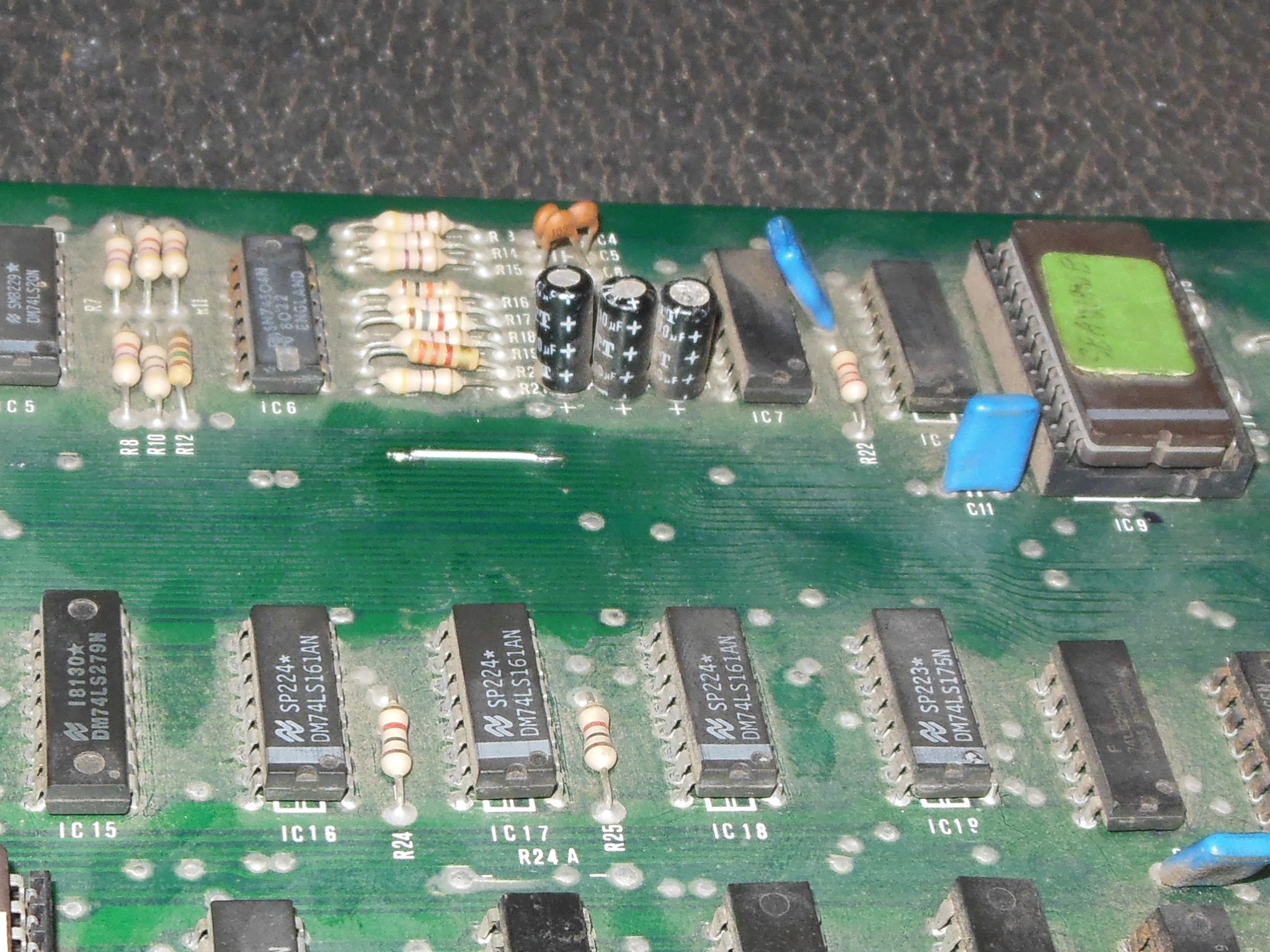

where capacitor C9 was also damaged. Scraping the solder resist and bridging across it

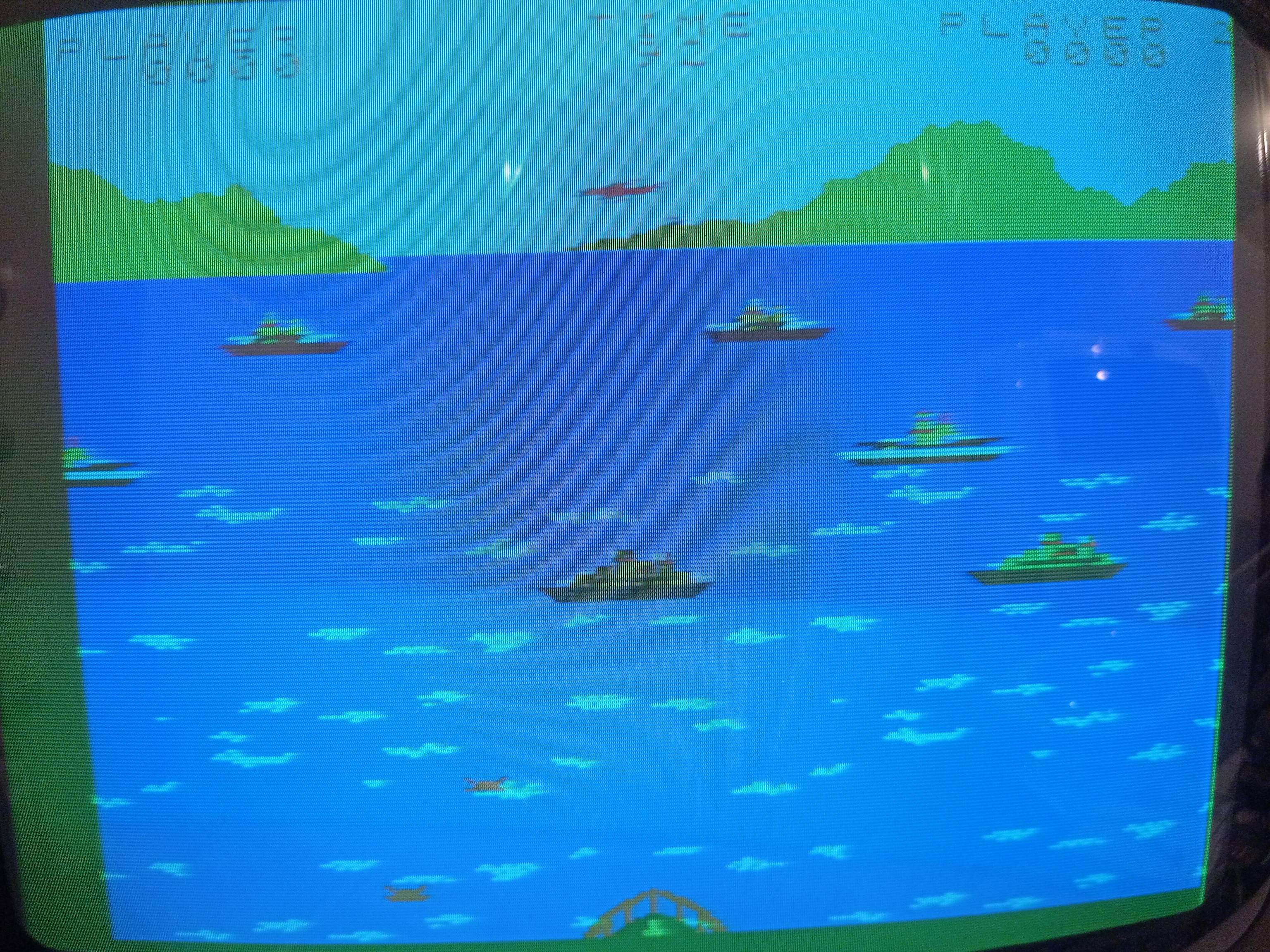

fixed both continuity and the graphics fault. The game ran & played OK on the bench.
19/08/2023 - Armada colour repair

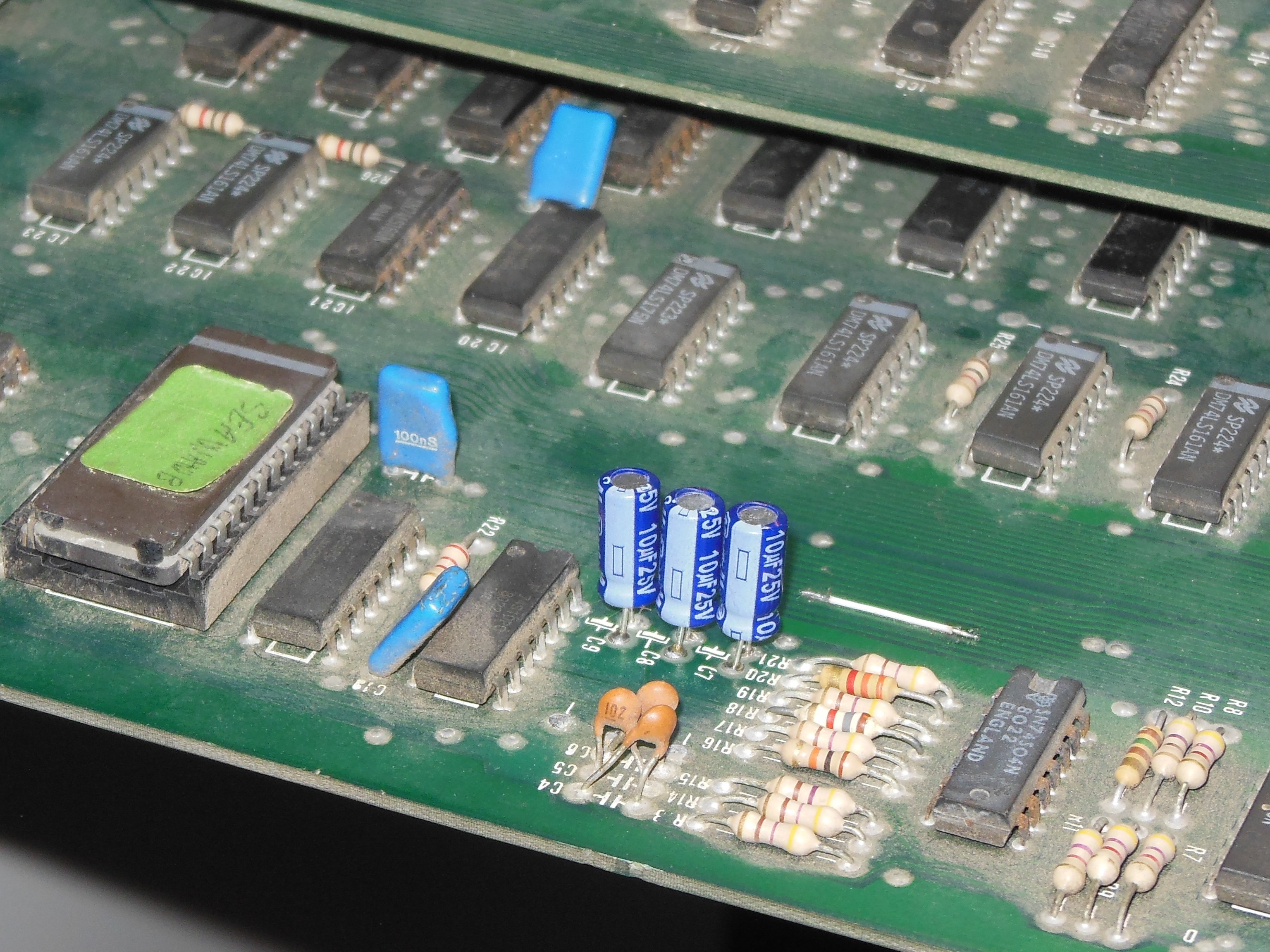

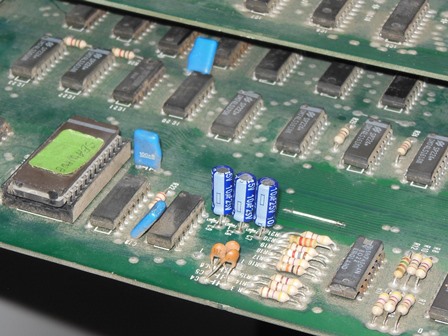

To keep the colours matched all three capacitors C7,C8,C9 (10uF/16V) were replaced.
Overall contrast looked a better with deeper blue ocean and lighter blue sky.
20/08/2023 - Armada in cabinet

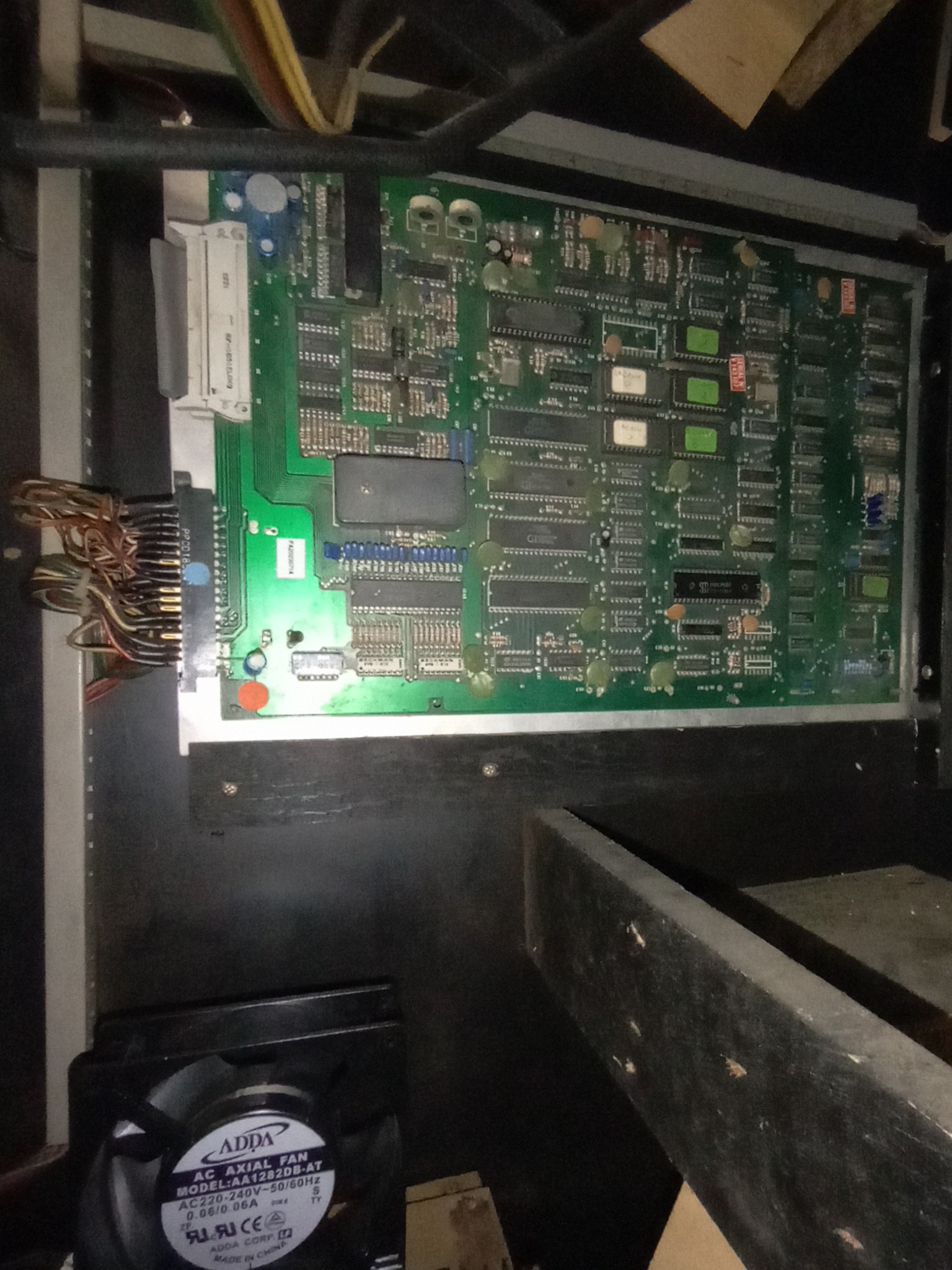

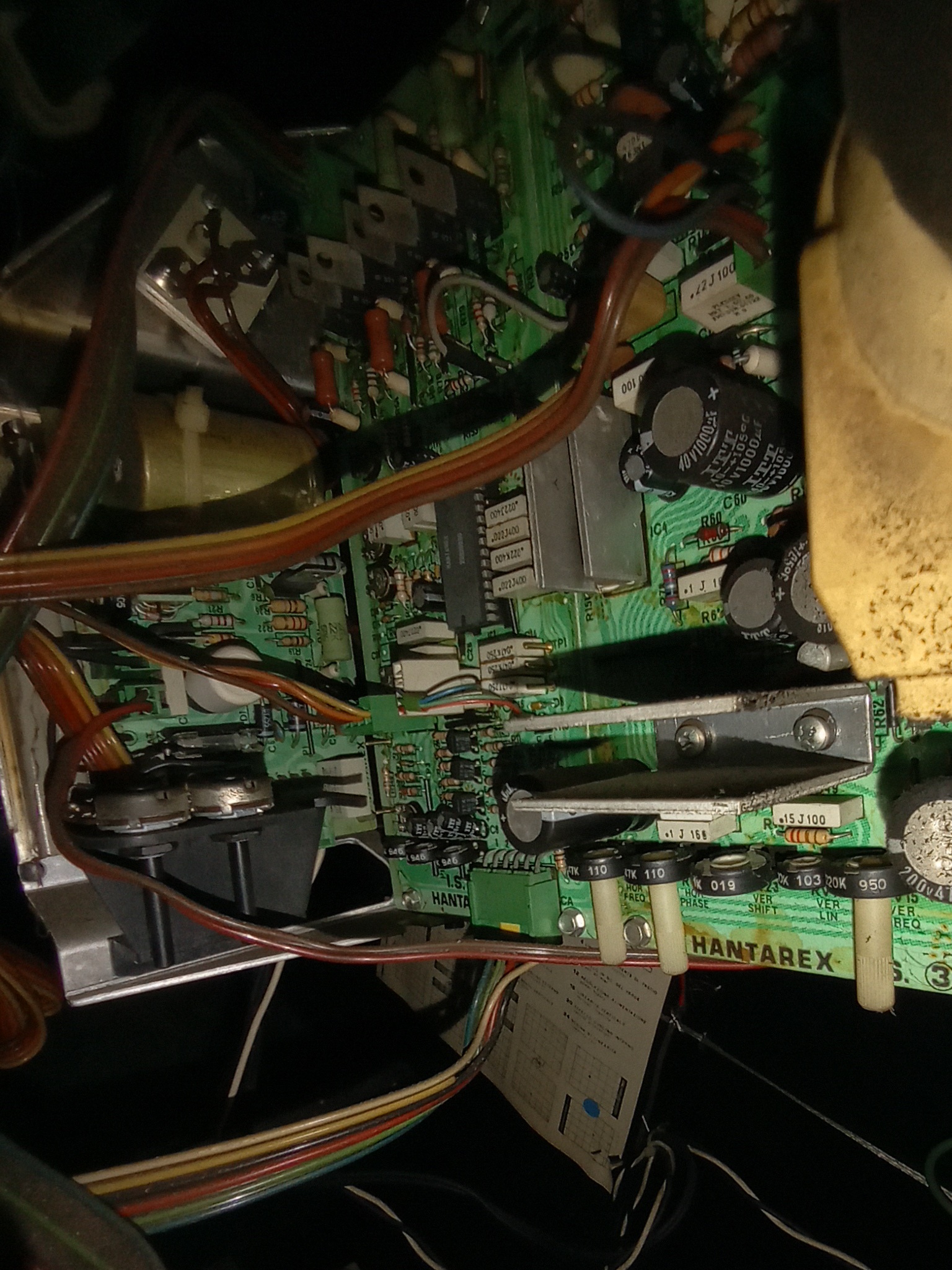

The game PCB on its original mounting plate fit perfectly in the Super Cobra cabinet and
the Hantarex MTC-900 was switched over to the inverted video input option by changing a small
plug on the chassis. Armada is a horizontal game, but this was good enough to be able to see
how it looked and played on an original monitor.

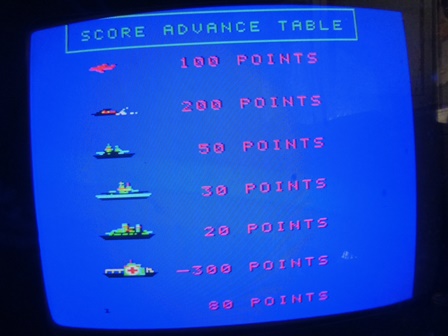

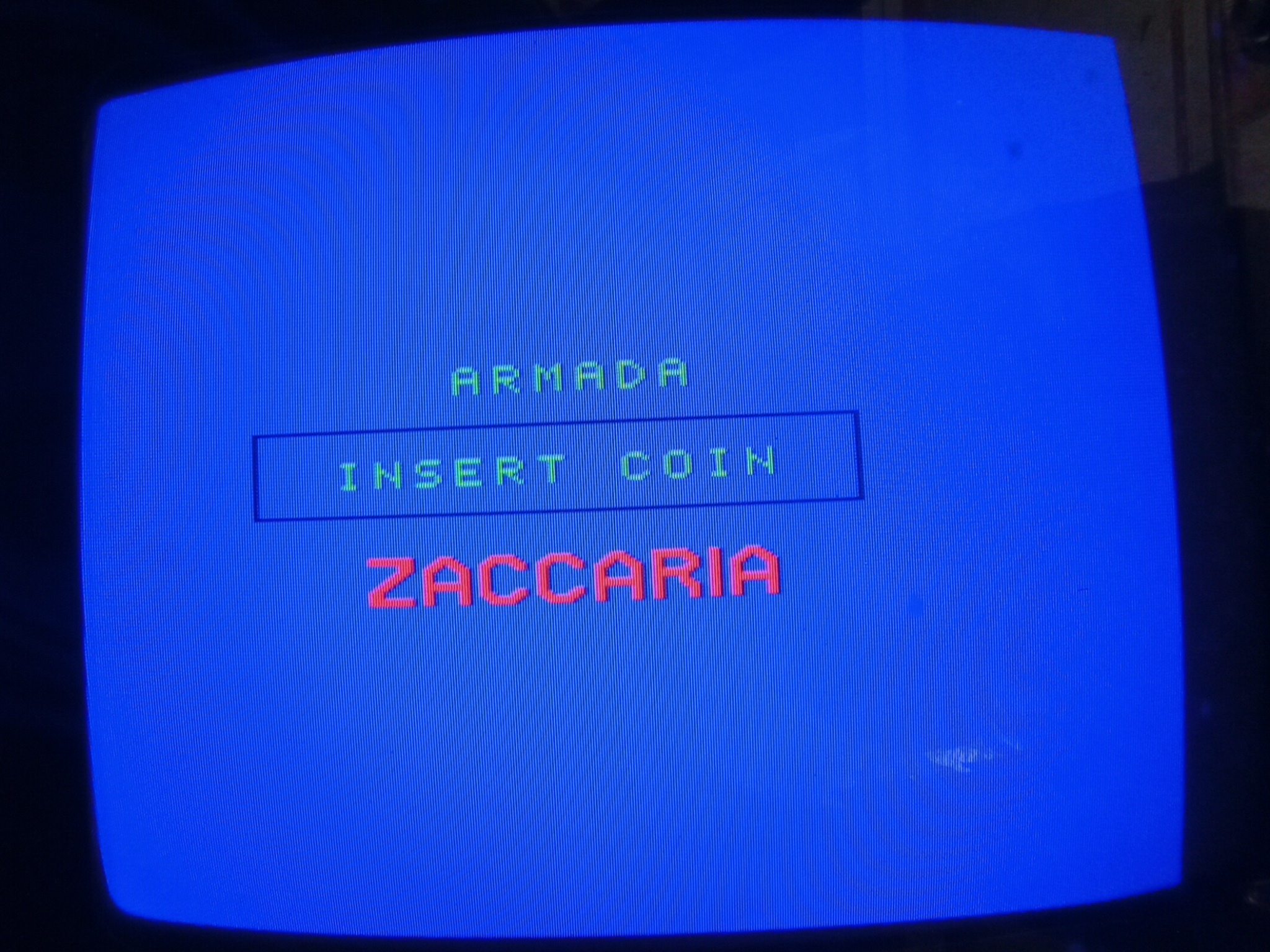

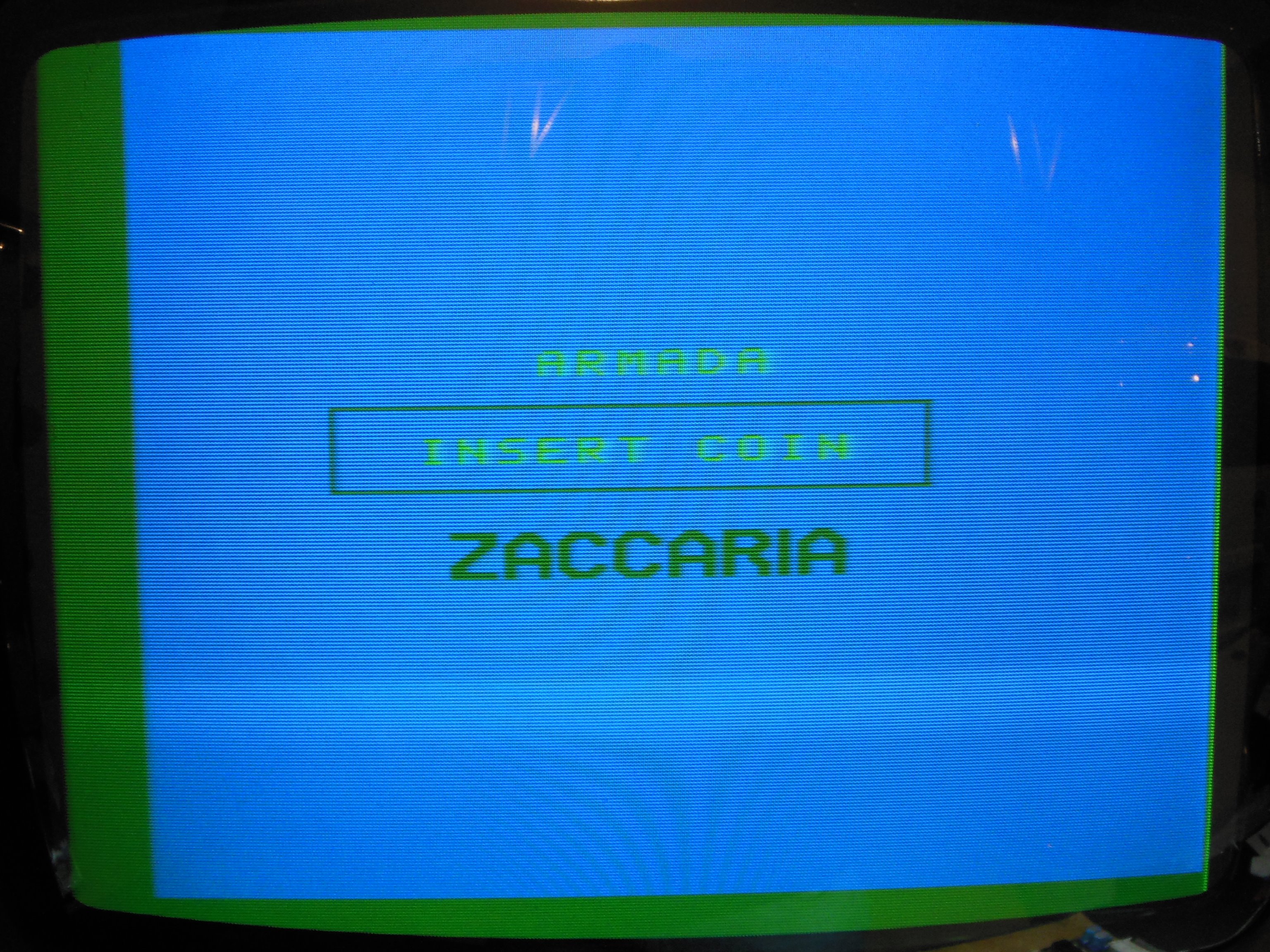

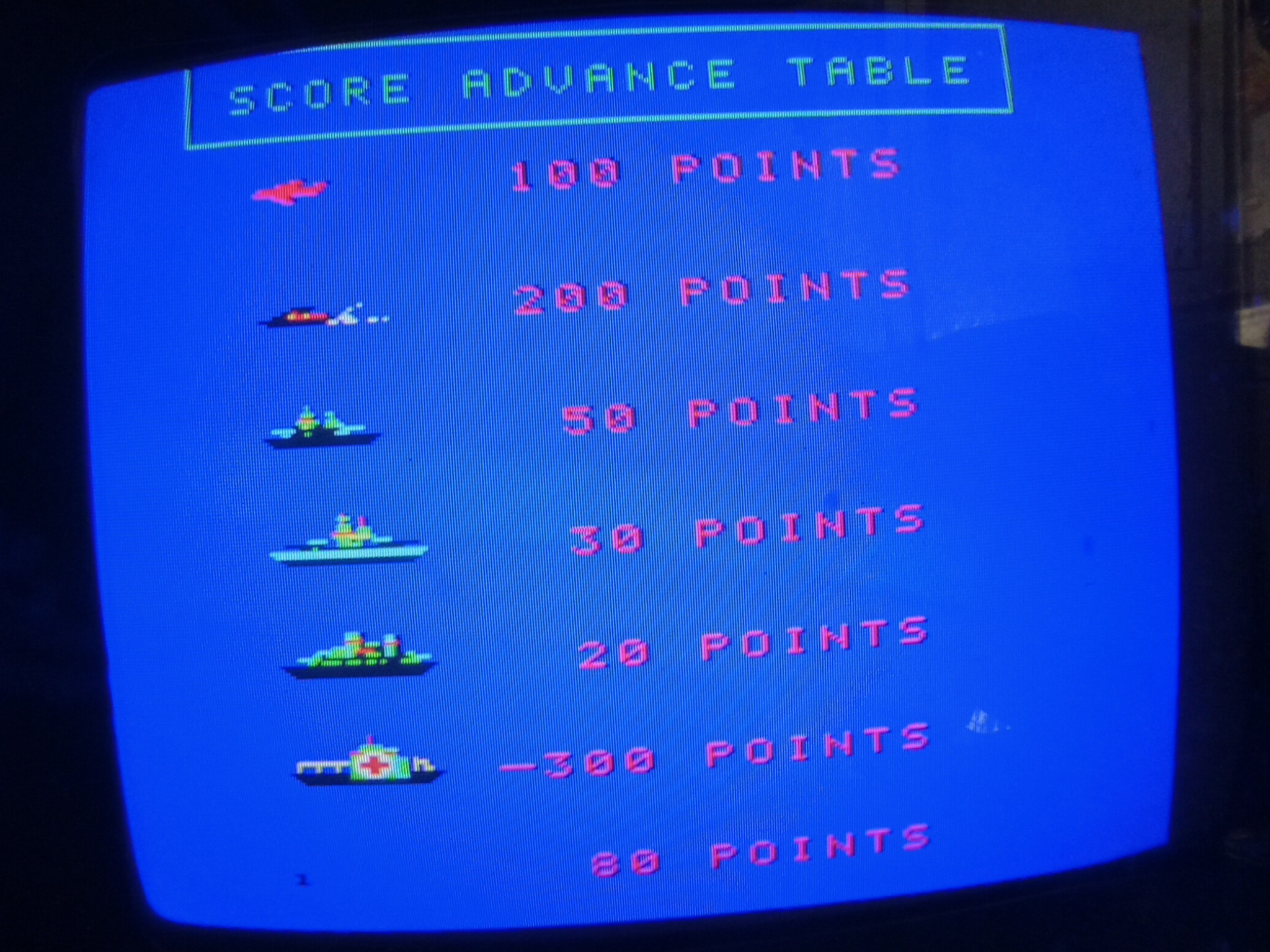

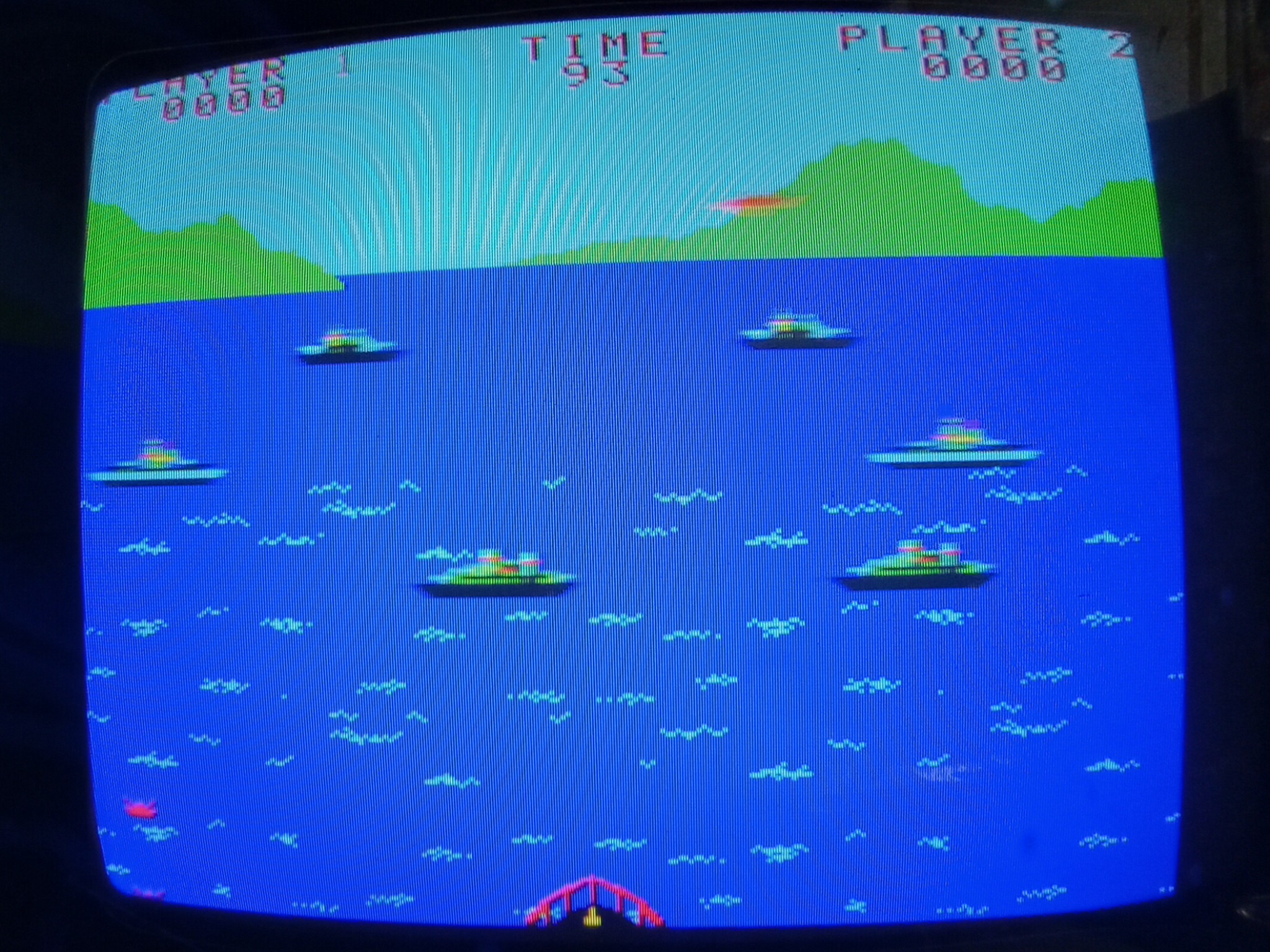

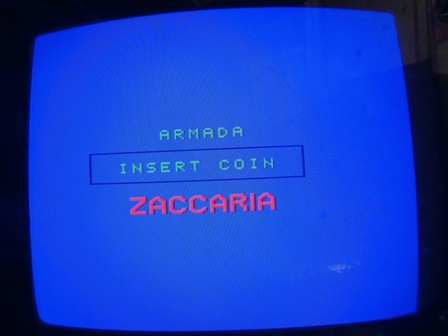

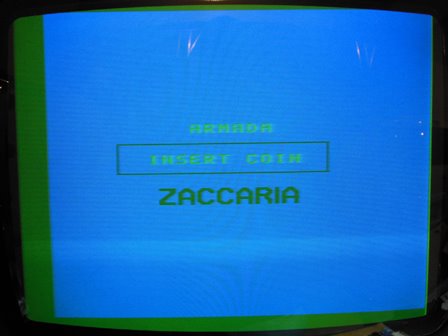

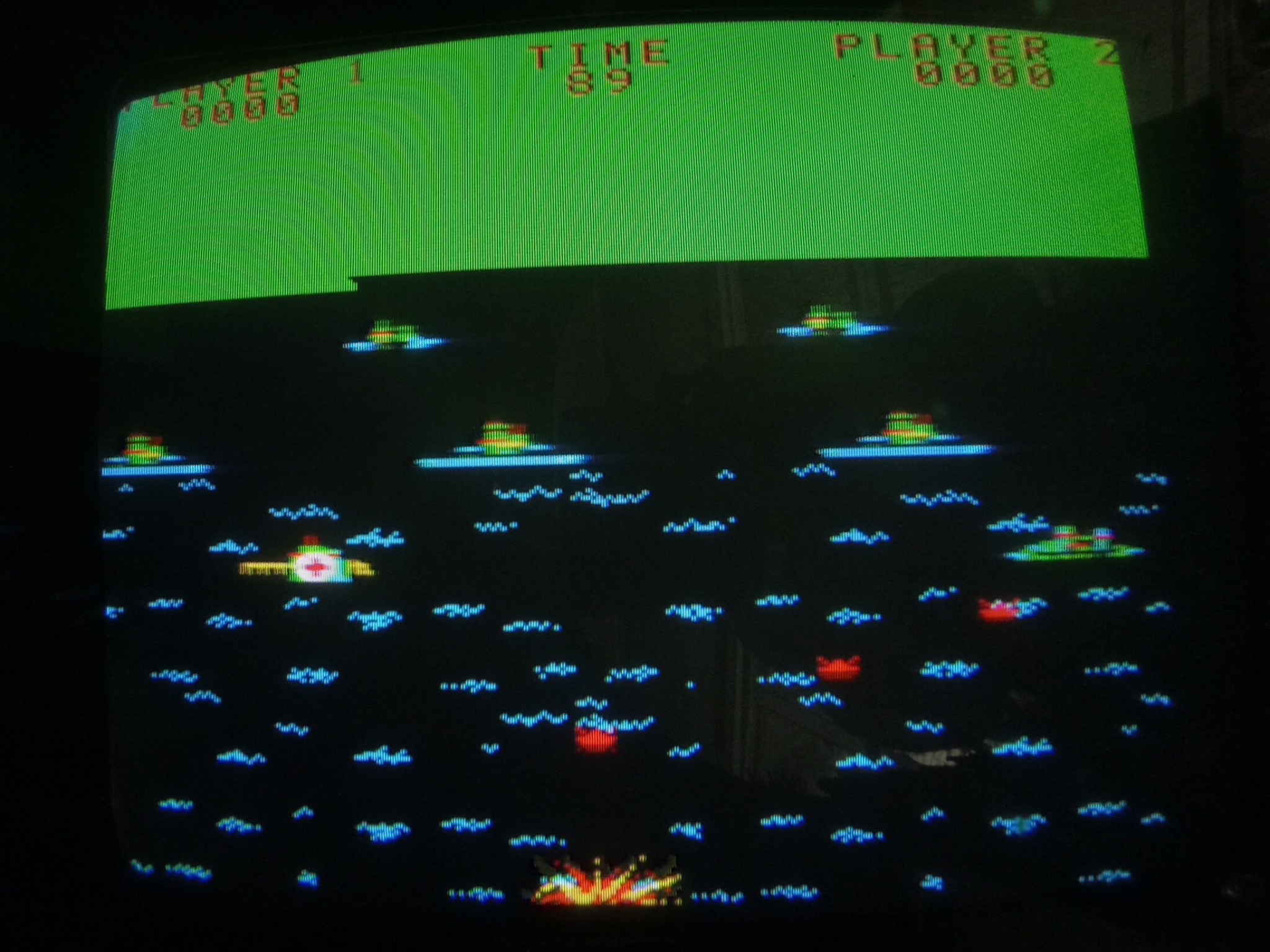

The picture quality was good, and a few screen shots were taken.
20/08/2023 - Armada game play video
