I've included pinball PCB numbers for completeness and to see where there are gaps
in the numbering. For further information on Zaccaria pinball PCBs please visit the
Zaccaria Pinball WWW Site.
Zaccaria PCBs generally had one or both of the Zaccaria PC "B"
number (1B11xx or 1B11xxx) and Zaelco/Zelco Games "P" number (yy-xxx or Pyy-xxx).
The "P" number looks like it may indicate the year and design count for the year.
I've omitted the revision suffix from the "P" number (Pyy-xxx/Mz).
NOTE: Many early PCBs did not contain numbers on the silk screen (top) layer but often
still carried a PC "B" number on the metal (bottom solder side) layer.
| PC B Number |
PC P Number |
Genre | Description | Part Number |
Game(s) | Top Photo |
Bottom Photo |
Notes |
|---|---|---|---|---|---|---|---|---|
| 1B1104 | . | Pinball | Display Driver | |||||
| 1B1105 | . | Pinball | 6 Digit Display | |||||
| . | Pinball | 4 Digit Display | ||||||
| 1B1109 | . | Pinball | Power Regulation | |||||
| 1B1110 | . | Pinball | CPU | |||||
| 1B1111 | . | Pinball | Interface Driver | |||||

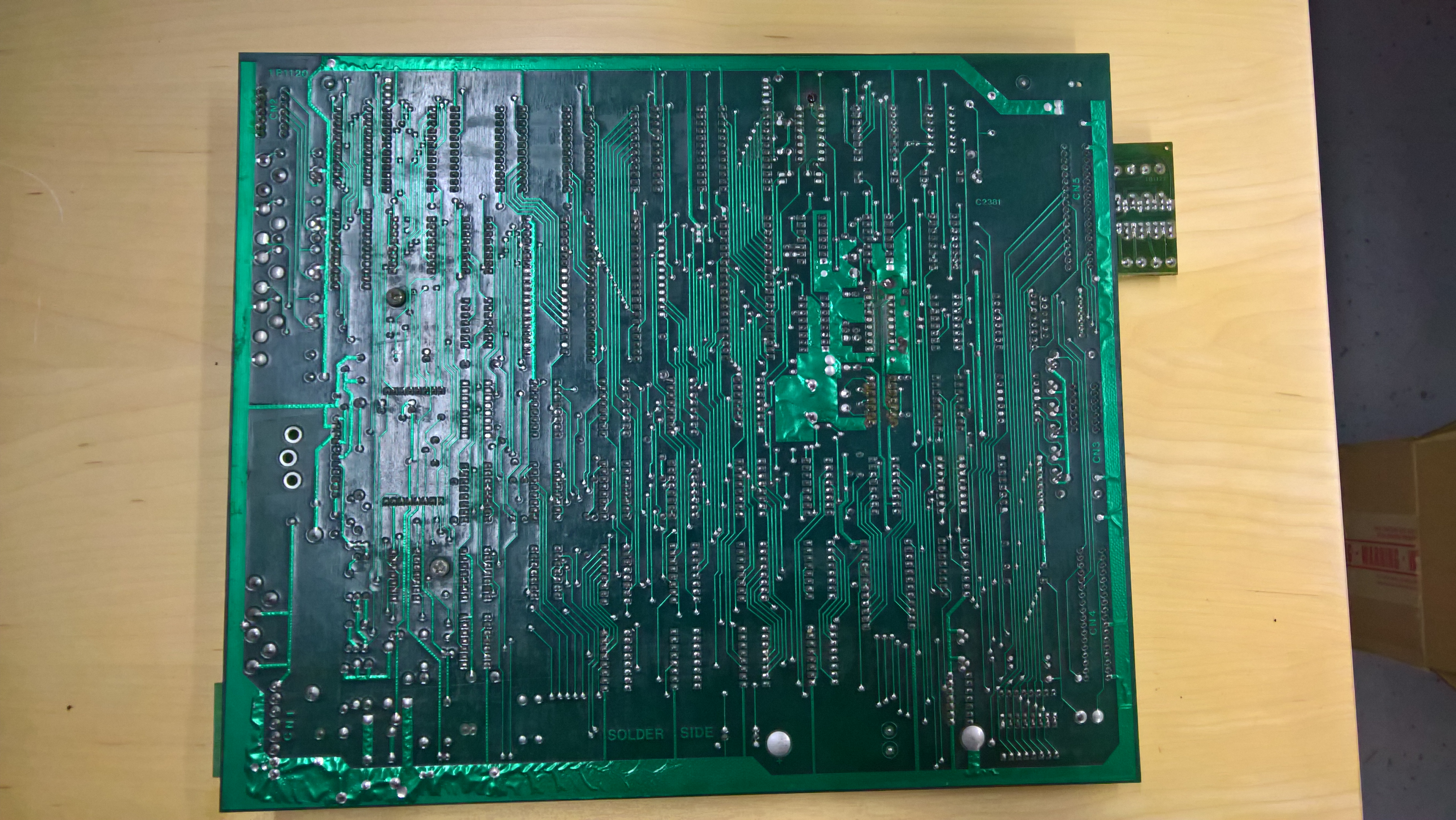

| 1B1120 | . | Video | Main | . |
The Invaders Dodgem |
|
|
. |
| 1B1121 | . | Pinball | Power Regulation | |||||
| 1B1125 | . | Pinball | Sound | |||||
| 1B1126 | . | Video | Power Regulation | CEC 043 |
Astro Wars Galaxia Sea Scare Moon Crest |
. | . |
+5V @ 3.5A, +12V @ 1.0A, -5V @ 0.5A Transformer as CEC 110 |
| CEC 075 |
Space Fortress Space Pirate |
. | . |
+5V @ 3.5A, +15V @ 1.5A and -15V @ 0.5A Transformer 2C 1012 (MTR-V) |
||||
| CEC 094 |
The Invaders Phoenix |
. | . |
+5V @ 3.5A, +12V @ 1.0A, -5V is omitted Transformer as CEC 110 |
||||
| CEC 110 | various | . | . |
+5V @ 4.0A, +12V @ 2.0A, -5V @ 1.0A Transformer 2C 1014 (MTC-900) or 2C 1005 ("B" MTC-90 or "C" KT-3) |
||||
| 1B1126/1 | . | Video | Power Regulation | CEC 088 | Astro Fantasia | . | . |
+5V @ 6.0A, +12V @ 1.5A and -5V @ 0.5A Transformer 2C 1018 (MTC-900) |

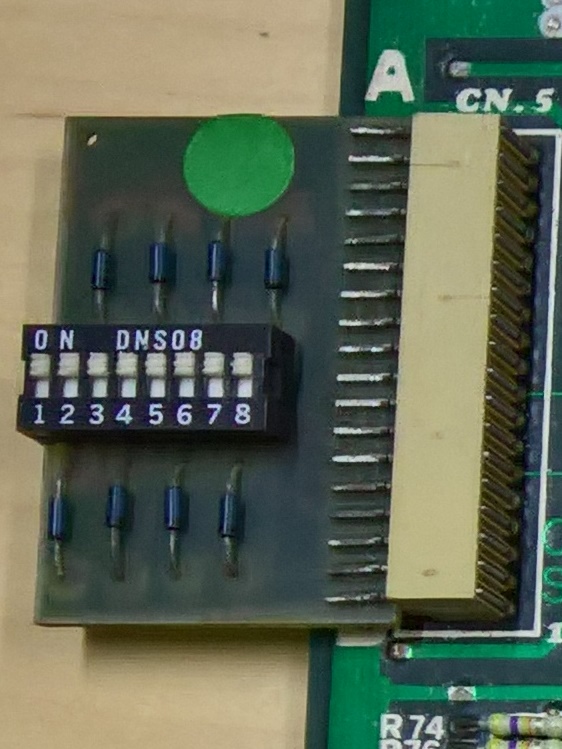

| 1B1127 | . | Video | DIP Switches | . | Dodgem |
|
|
. |
| 1B1128 ? | . | Video | Sound | . | Dodgem | . | . | TBC, there is a number on the underside. |

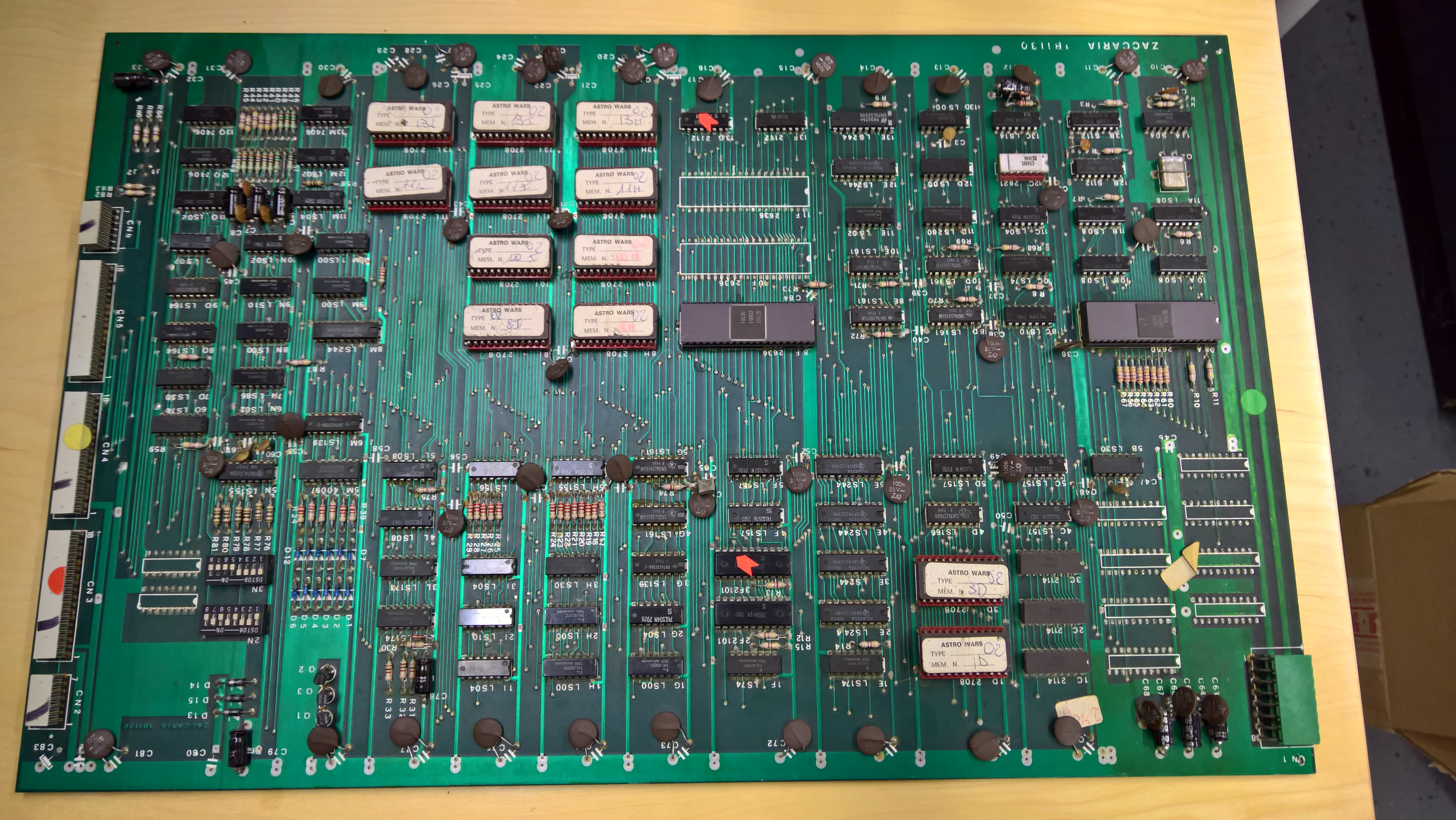

| 1B1130 | 80-001 | Video | Main | . | Astro Wars |
|
|
. |
| 1B1131 | 80-002 | Video | Sound | . | Astro Wars |
|
|
. |
| 1B1132 | 80-003 | Video | Main | CEC 058 | Galaxia | . | . | . |
| 1B1133 | 80-004 | Video | Sound | CEC 050 | Galaxia | . | . | . |
| 1B1138 | . | Video | Main | CEC 063 | Sea Battle | . | . | . |
| 1B1139 | . | Video | Sound | CEC 060 | Sea Battle | . | . | . |
| 1B1140 | . | Video | LED Display | CEC 064 | Sea Battle | . | . | . |
| 1B1145 | . | Video | Coin Credit | CEC 069 | various | . | . | Used in many licensed games circa 1980-1982. |
| 1B1146 | . | Pinball | Sound | |||||
| 1B1147 | . | Video | Main | . | Space Pirate Space Fortress |
. | . | AW100203 REV J "Zaccaria", PCB no. and "Cinematronics" scratched off on Fortress. Why? |
| 1B1148 | . | Video | Audio & DAC | . | Space Pirate | . | . | . |
| . | . | Video | Audio & DAC | . | Space Fortress | . | . | Only PCB label "S.C.". No "Zaccaria" or PCB no. |
| 1B1149 | . | Pinball | DIP Switch | |||||
| 1B1150 | . | Video | Main | CEC 082 | Quasar | . | . | . |
| 1B1150/1 | . | . | . | |||||
| 1B1151 | . | Video | Aux Video | CEB 069 | Quasar | . | . | . |
| 1B1152 | 80-009 | Video | Sound | . | Quasar |
|
|
. |
| 1B1156 | . | Video | CPU IO Sound | . | Phoenix | . | . | . |
| 1B1157 | . | Video | Video Memory | . | Phoenix | . | . | . |
| 1B1160 | P80-022 | Video | Main | . | Laser Battle | . | . | . |
| 1B1162 | P81-059 | Video | Sound | . | Laser Battle | . | . | . |

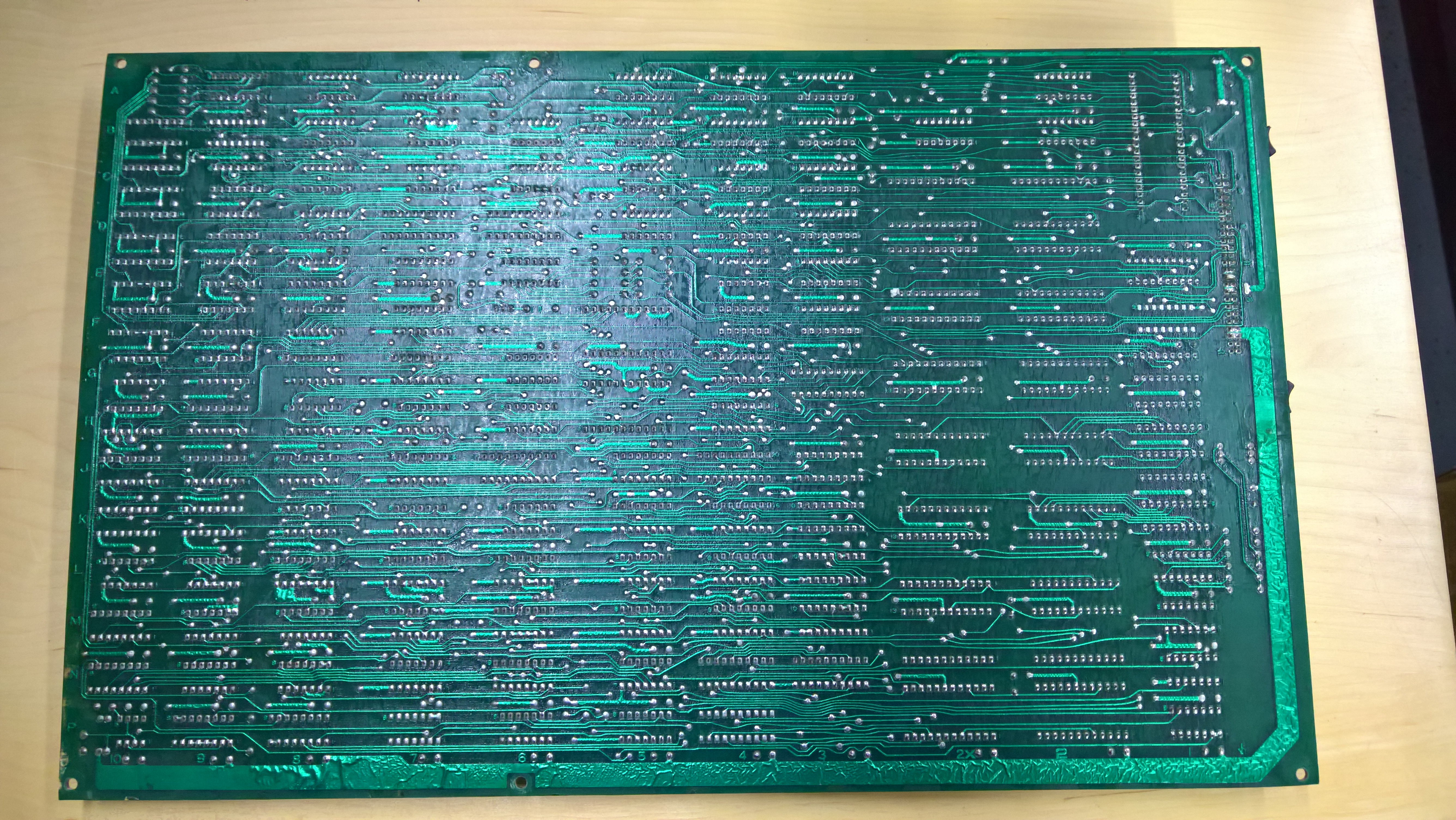

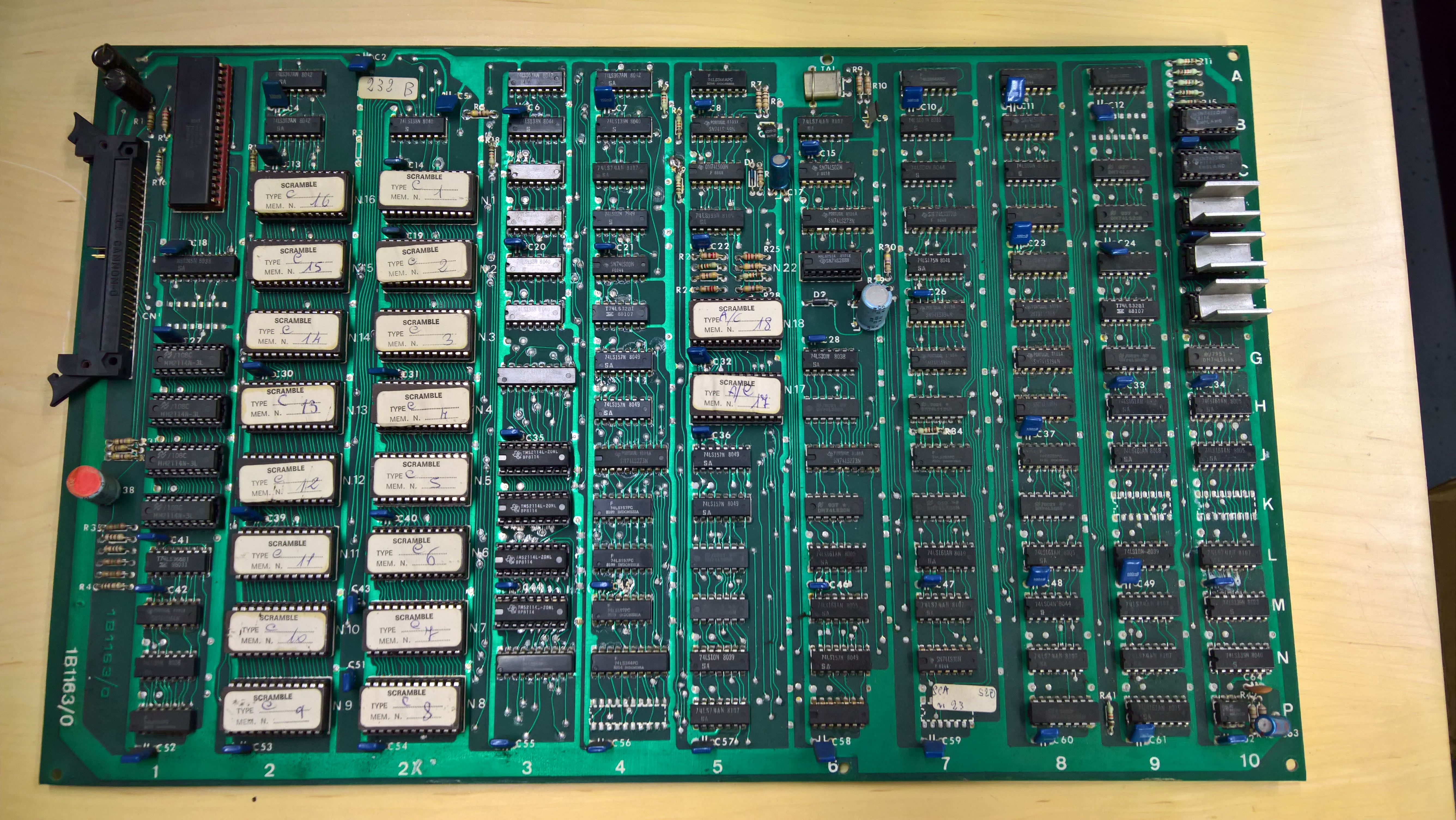

| 1B1163/0 | . | Video | Main | CEB 081 | Scramble |
|
|
. |

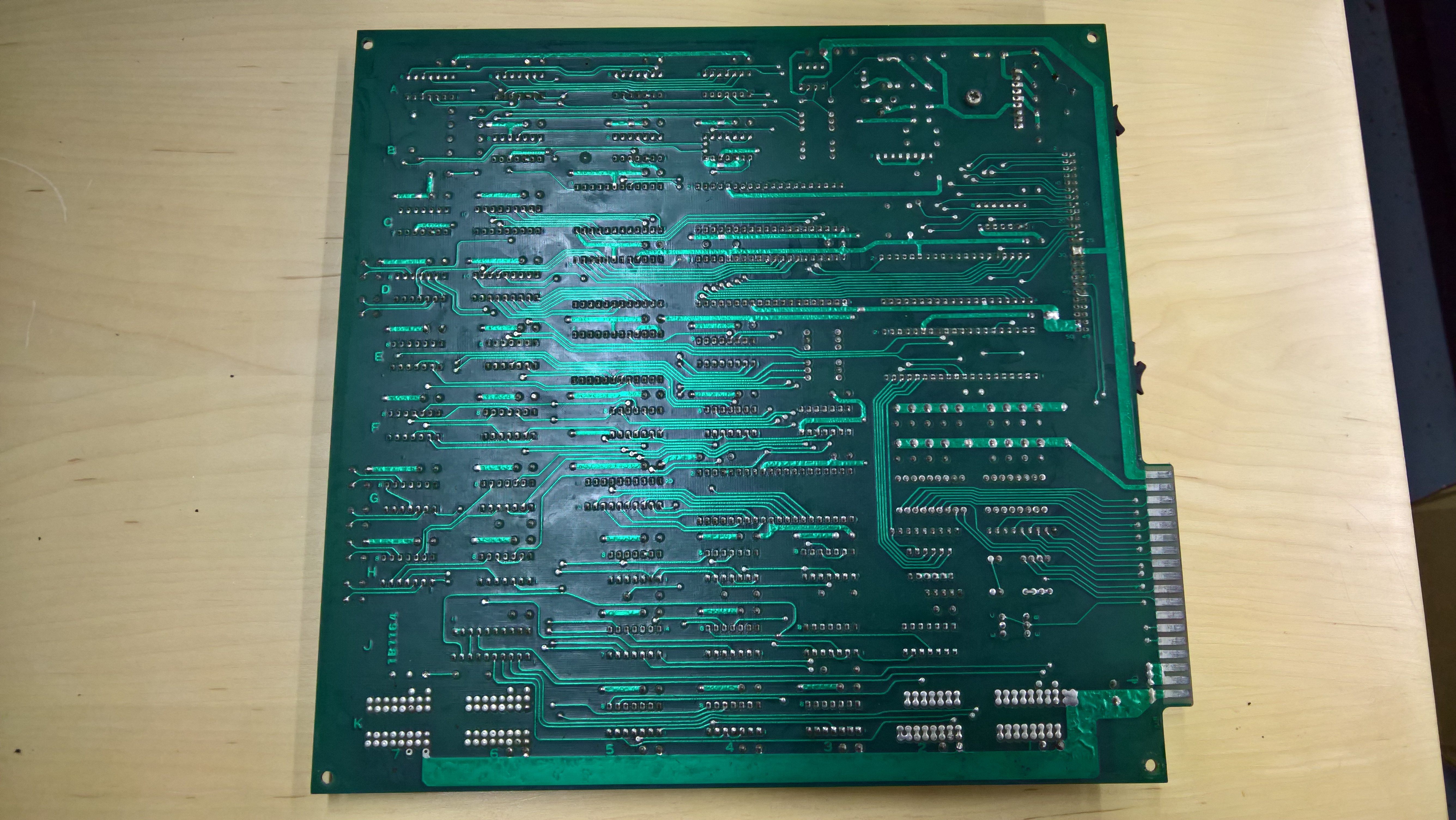

| 1B1164 | . | Video | Sound IO | CEB 082 | Scramble |
|
|
. |
| 1B1165 | . | Pinball | CPU | |||||
| 1B1166 | . | Pinball | Interface Driver | |||||
| 1B1167 | . | Pinball | Power Regulation | |||||
| 1B1168 | . | Pinball | 2 x 4 Digit Display | |||||
| 1B1170 | P81-050 | Pinball | Sound | |||||
| 1B1173 | . | Pinball | Light Effects | |||||
| 1B1178 | . | Video | Main | . | Dribbling | . | . | . |
| 1B1185 | P81-012 | Video | Coin Credit | CEC 182 | various | . | . | Used in many licensed games circa 1982+ |
| 1B1187 | . | Video | Steering Wheel Sensor | . | Turbo | . | . | . |
| 1B1188 | . | Video | Optical Limiter | . | Turbo | . | . | . |
| 1B1189 | . | Video | Speed Gear | . | Turbo | . | . | . |
| 1B1190 | . | Video | Tachometer | . | Turbo | . | . | . |
| 1B1191 | . | Video | Power Amplifier | . | Turbo | . | . | . |
| 1Bxxxxx 5 Digit PC B Numbers | ||||||||
| 1B11106 | . | Video | Main | . | Cat'n'Mouse | . | . | Sticker over 1B1160. |
| 1B11107 | P82-002/M2 | Video | Sound | . | Cat'n'Mouse | . | . | . |
| 1B11108 | . | Video | Main | . | Eyes | . | . | . |
| 1B11123 | . | Pinball | 7 Digit Display | |||||
| 1B11124 | . | Video | Super CPU | . | Tron | . | . | . |
| 1B11125 | . | Video | Super Sound I/O | . | Tron | . | . | . |
| 1B11126 ? | . | Video | MCR/II Video Gen. | . | Tron | . | . | . |
| 1B11136 | P82-013/A | Pinball | Sound | |||||
| 1B11140 | P82-003/A | Video | Video | CEC 275 |
Money Money Jackrabbit |
. | . | . |
| 1B11141 | P82-003/B | Video | CPU IO | CEC 274 | Money Money | . | . | . |
| CEC 316 | Jackrabbit | . | . | Same as CEC 274 with Jackrabbit ROMS. | ||||
| 1B11142 | P82-020 | Video | Sound | CEC 276 | Money Money, Jackrabbit | . | . | . |
| 1B11147 | P83-001 | Video | Memory | CEC 277 | Money Money | . | . | . |
| CEC 317 | Jackrabbit | . | . | Same as CEC 277 with Jackrabbit ROMS. | ||||
| 1B11150 | . | Pinball | 8 Digit Display | |||||
| 1B11167 | . | Pinball | Power Regulation | |||||
| 1B11171 | . | Video | Sound Amplifier | . | Shooting Gallery | . | . | . |

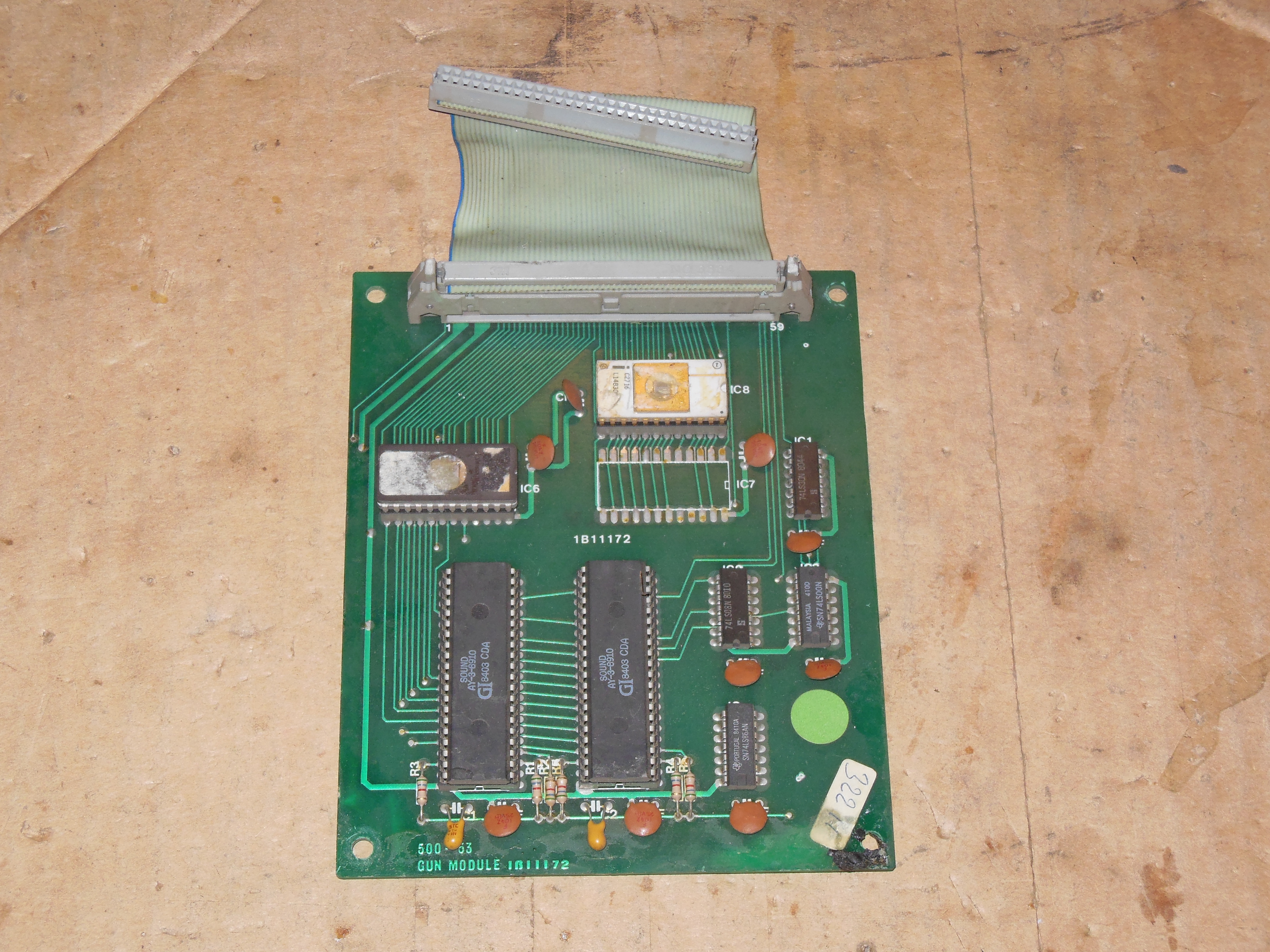

| 1B11172 | . | Video | Gun Module | . | Shooting Gallery | . | . | . |
| 1B11178 | . | Pinball | Sound | |||||
| 1B11181 | . | Pinball | Aux Sound | |||||
| 1B11183 | . | Pinball | Sound | |||||
| 1B11187 | . | Pinball | 8 Digit LED Display | |||||
| 1B11188 | . | Pinball | CPU | |||||
| 1B11189 | . | Pinball | Sound | |||||
| 1B11190 | . | Pinball | Power Regulation | |||||
| 1B11191 | . | Pinball | Video | |||||
| 1B11195 | . | Pinball | Video | |||||
A Frankenstein PCB set built using Nintendo Donkey Kong, Century CVS, Seatongrove & Zaccaria parts that may have been the last Zaccaria video game.
|
