Scorpion Maintenance 2023

01/06/2023 - Northwest Pinball and Arcade Show (2023)

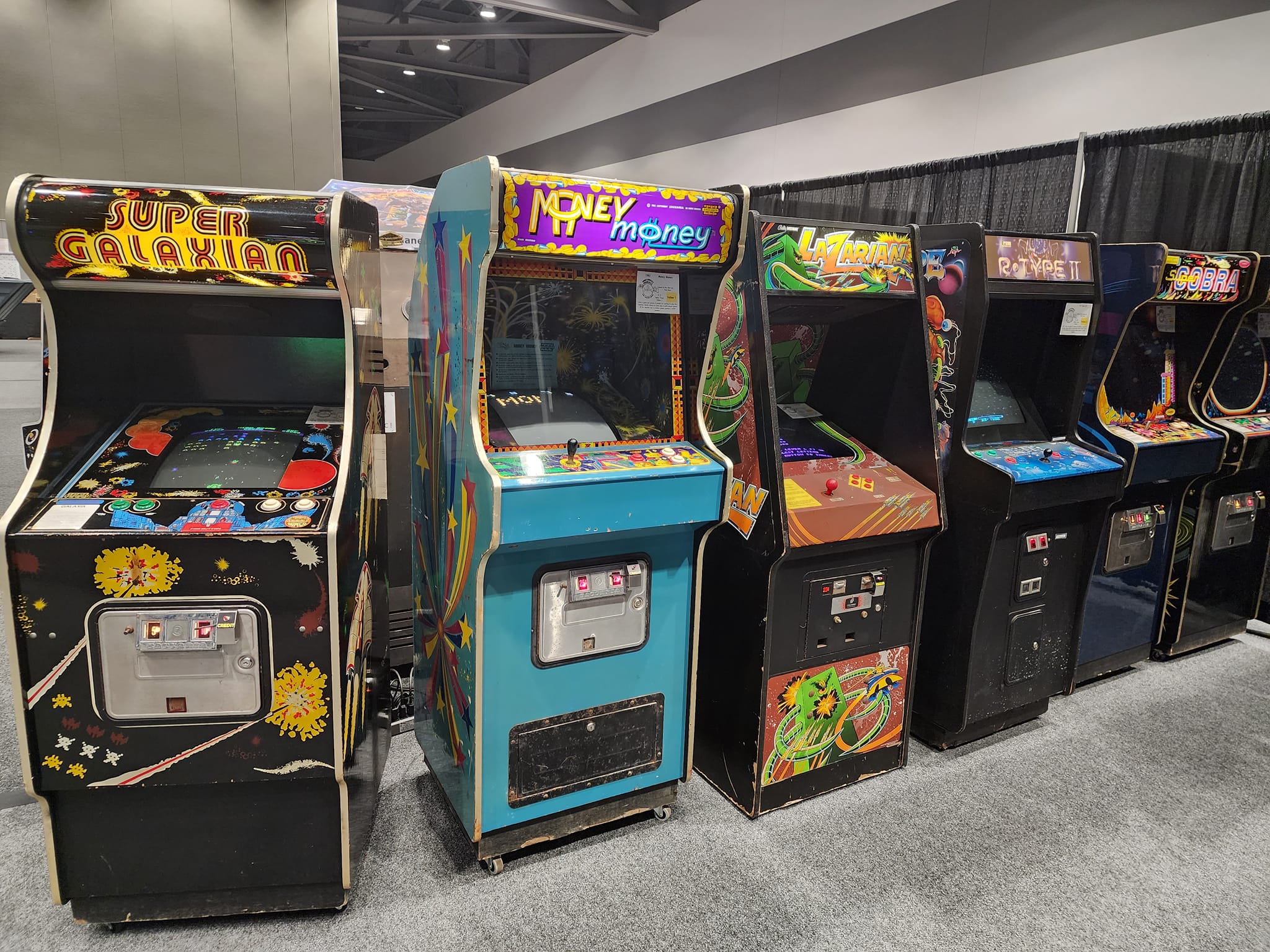

Zaccaria games at NWPAS Scorpion graphics fault

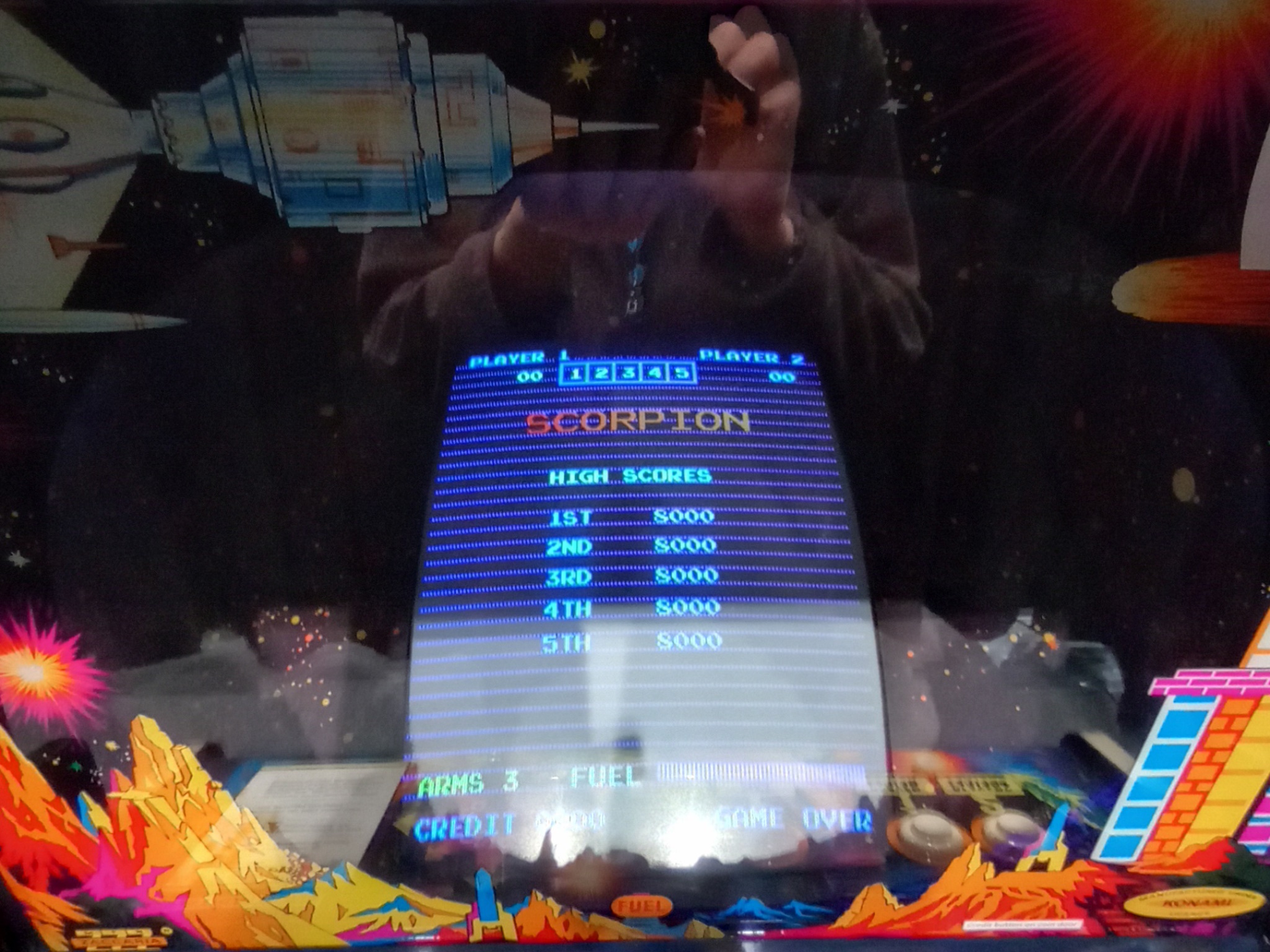

On show day 2 the game developed lines in the graphics and then stopped booting. The spare game PCB was swapped in and the game ran for the remainder of the show with no further issues.

27/06/2023 - Scorpion game PCB PA20210405 repair

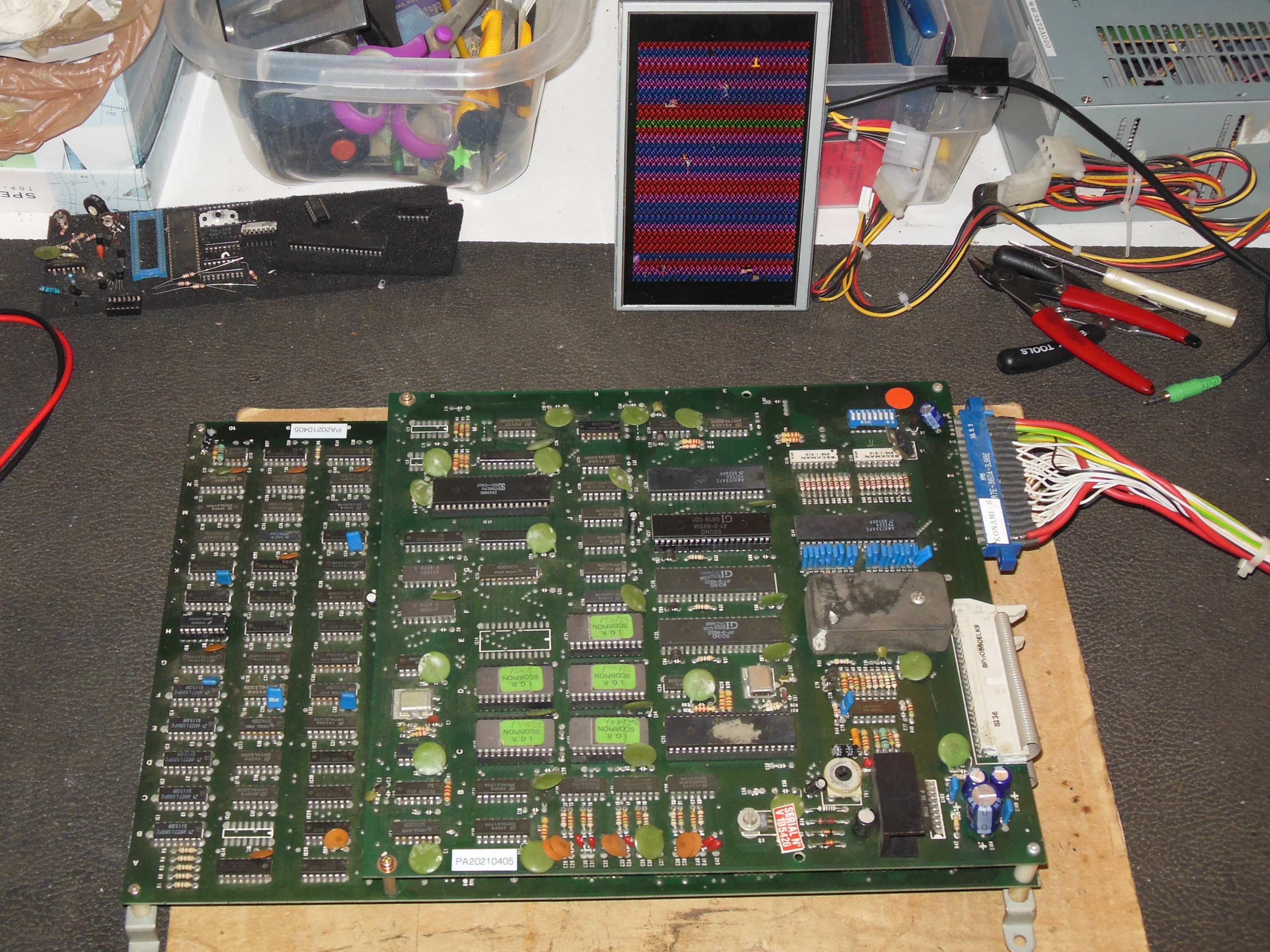

Zaccaria/IGR Scorpion PCB on the bench

The game PCB wasn't booting on the bench. Testing with the Arduino ICT found that all the ROM, RAM and interrupt tests all passed. Checking with a replacement IC 117 (Z80 CPU) the game booted and played OK. A cross check with the original Z80 CPU confirmed it was bad and the game was fixed with a new Z80.

07/08/2023 - MTC-900 FB monitor chassis PA20230807 repair

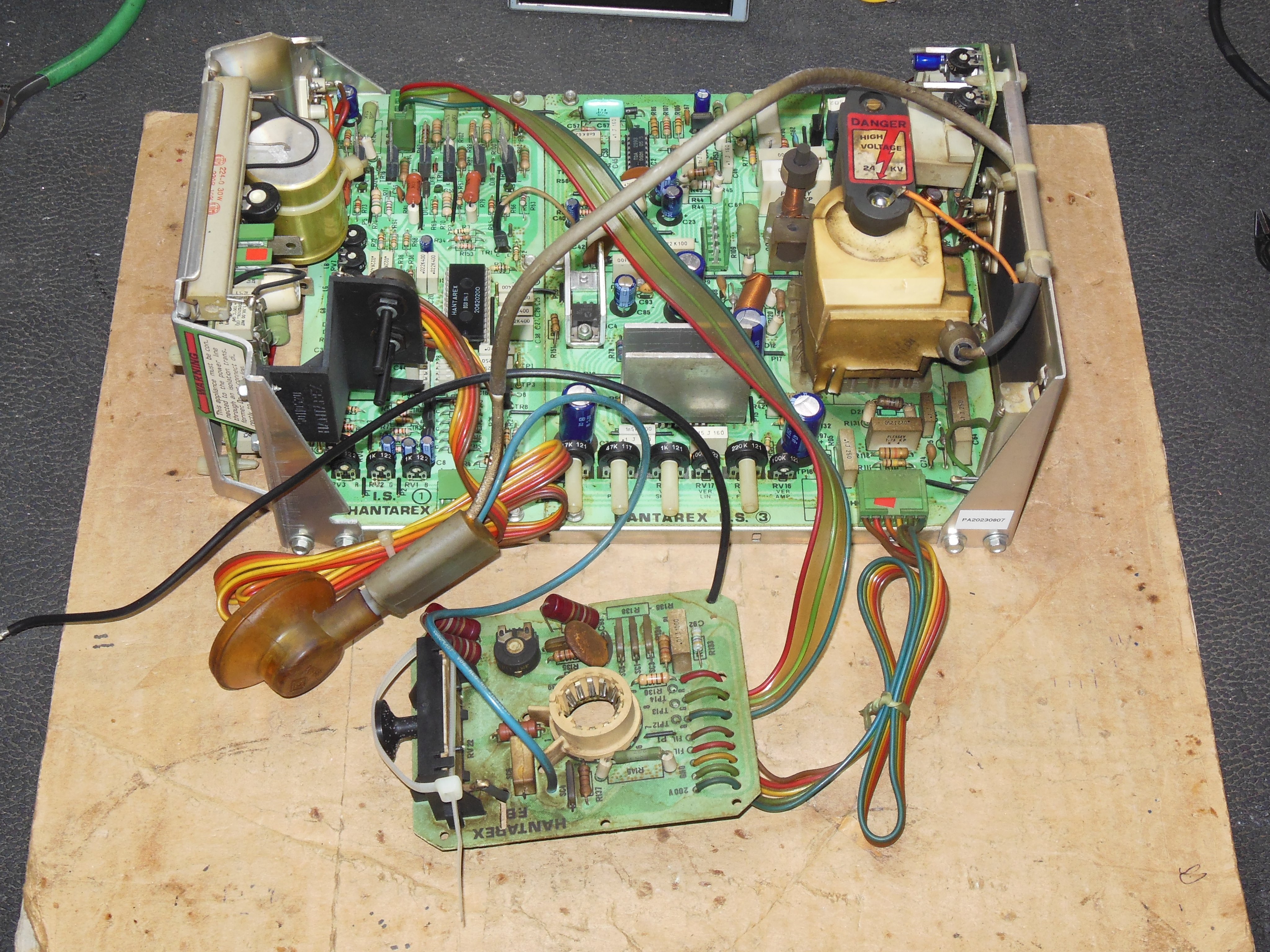

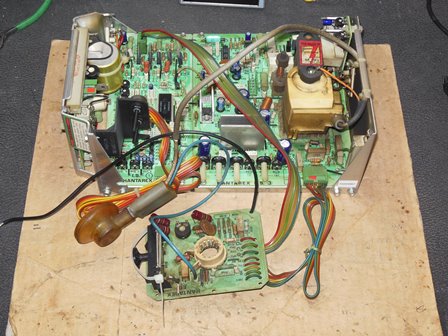

Hantarex MTC-900 FB chassis on the bench

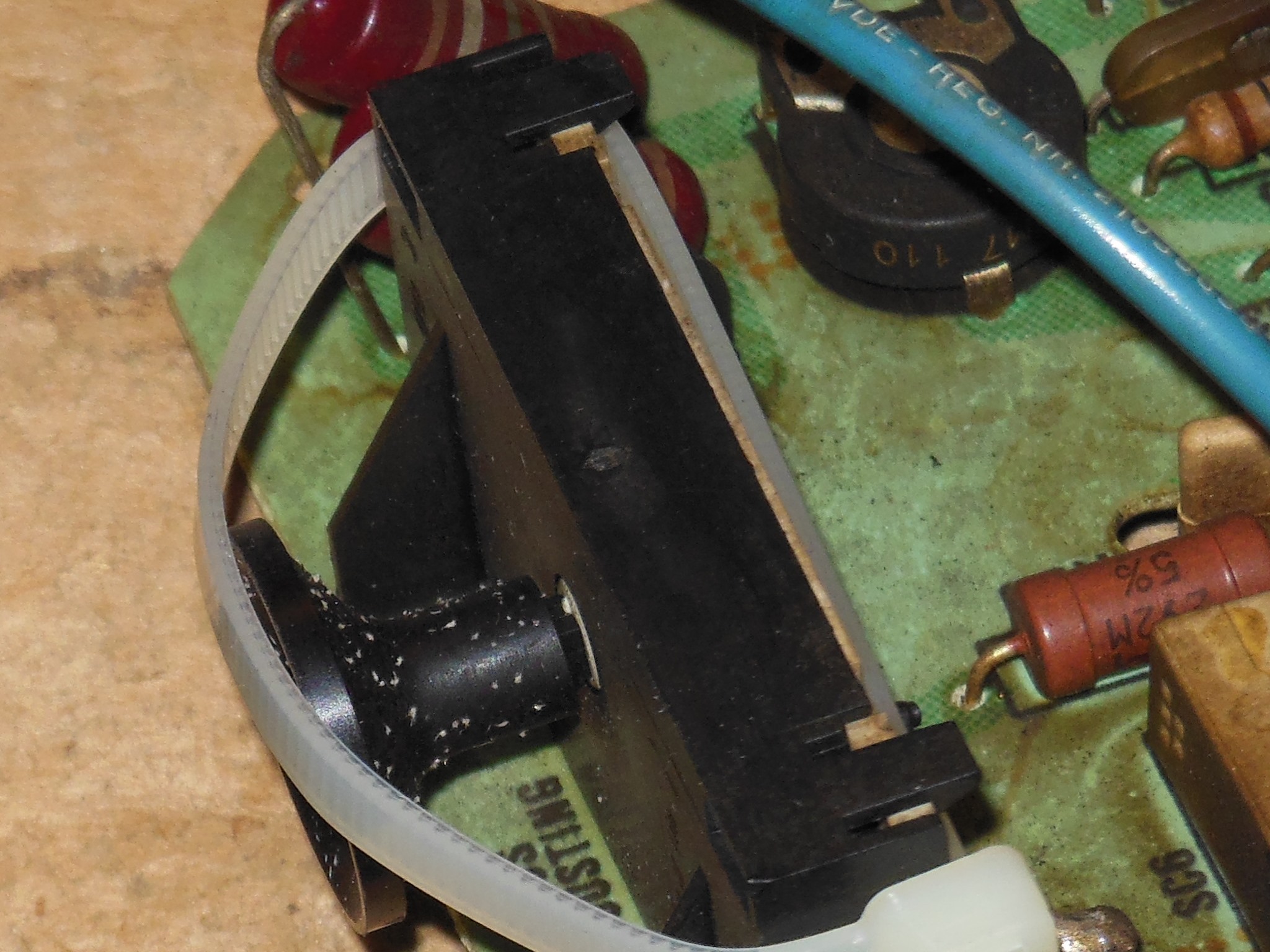

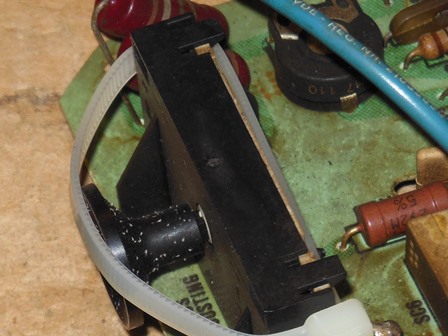

I'd had problems with this chassis drifting in and out of focus and the first attempted cure was a zip tie to hold the pot in place, however at the show the focus still drifted in and out.

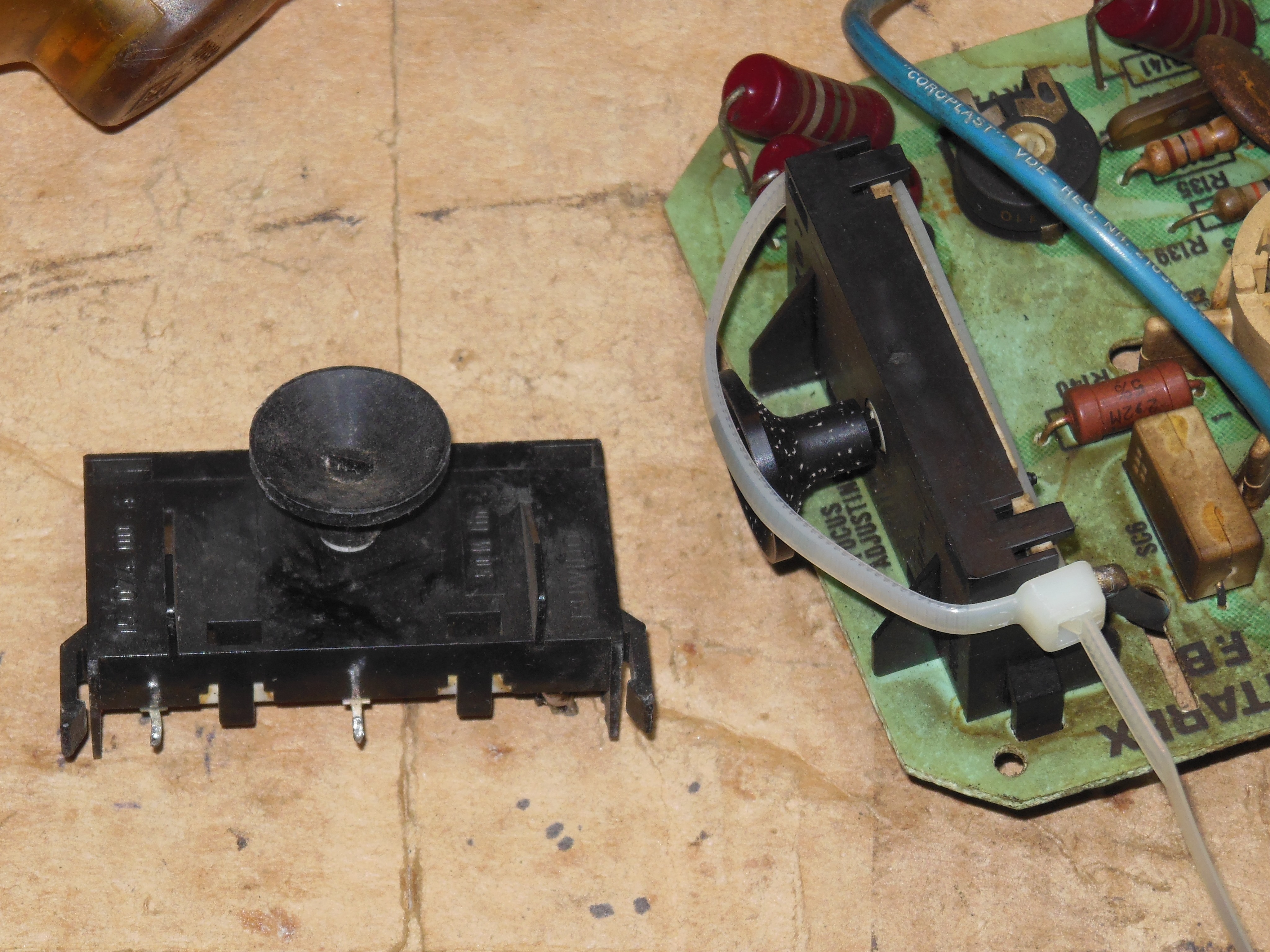

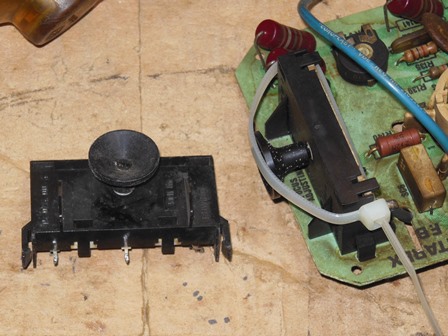

RUWIDO 50 linear focus pot Focus pot RUWIDO 50 linear focus pot - open

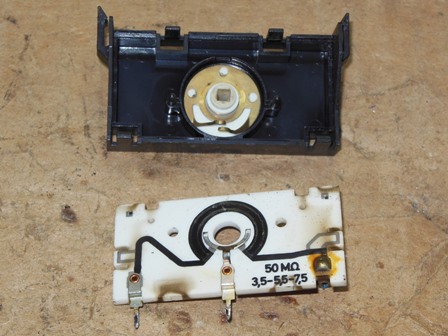

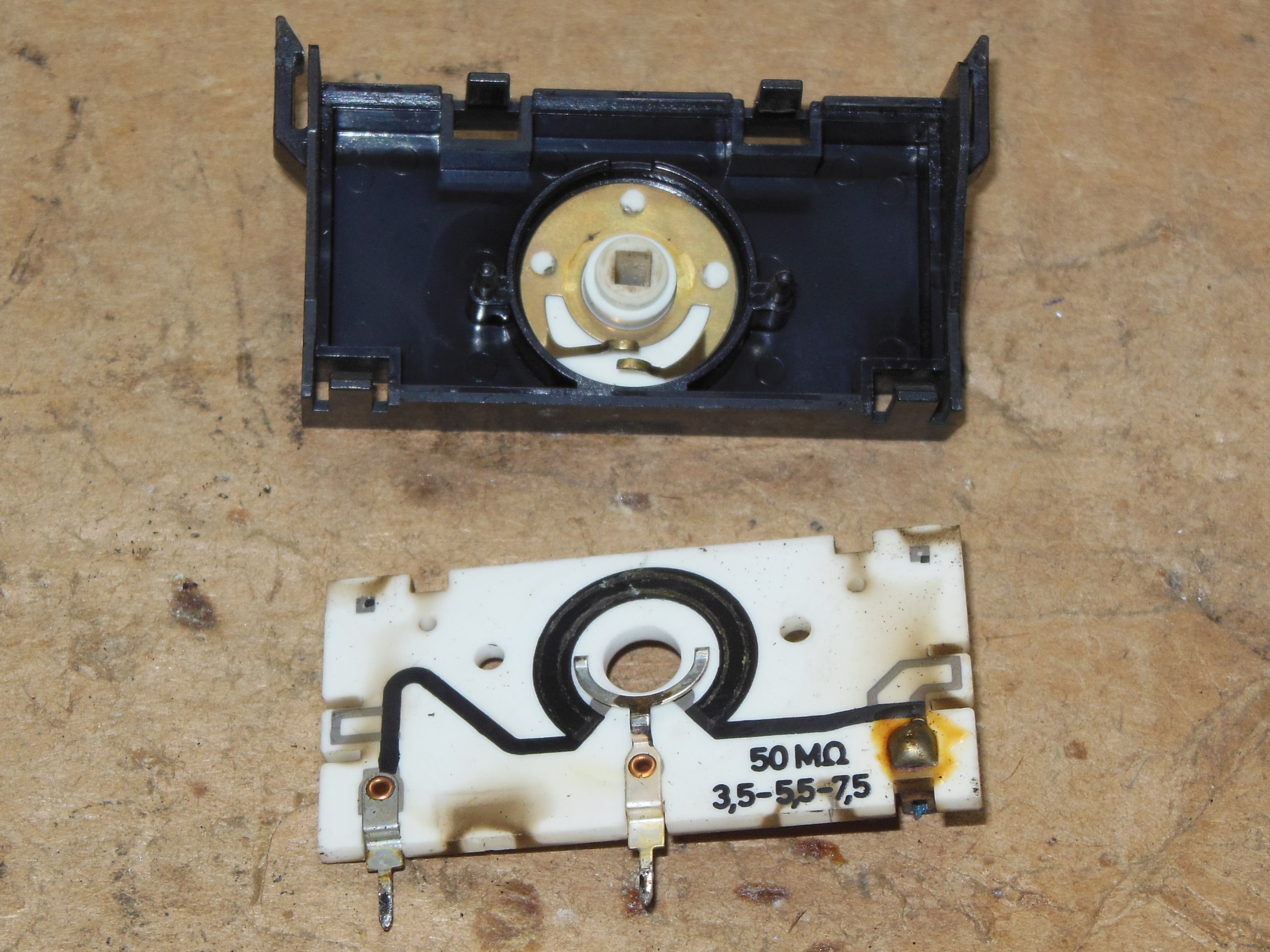

The focus pot RV22, a RUWIDO 50M linear 15074004, measured open across all pins. A recycled one from a scrap chassis measured 36.3 + 35.7 MOhm that seemed reasonable and was used to replace it. Since the pot was held together with clips it could be opened to try to repair it, however the wiper was broken and not repairable.

01/10/2023 - Monitor retest

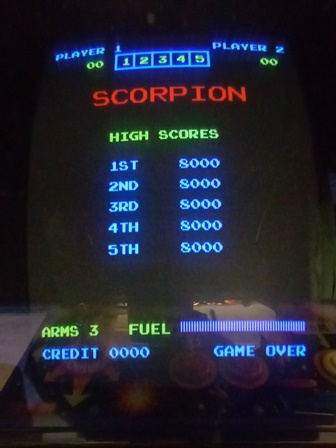

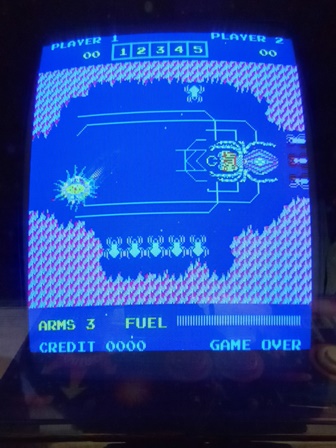

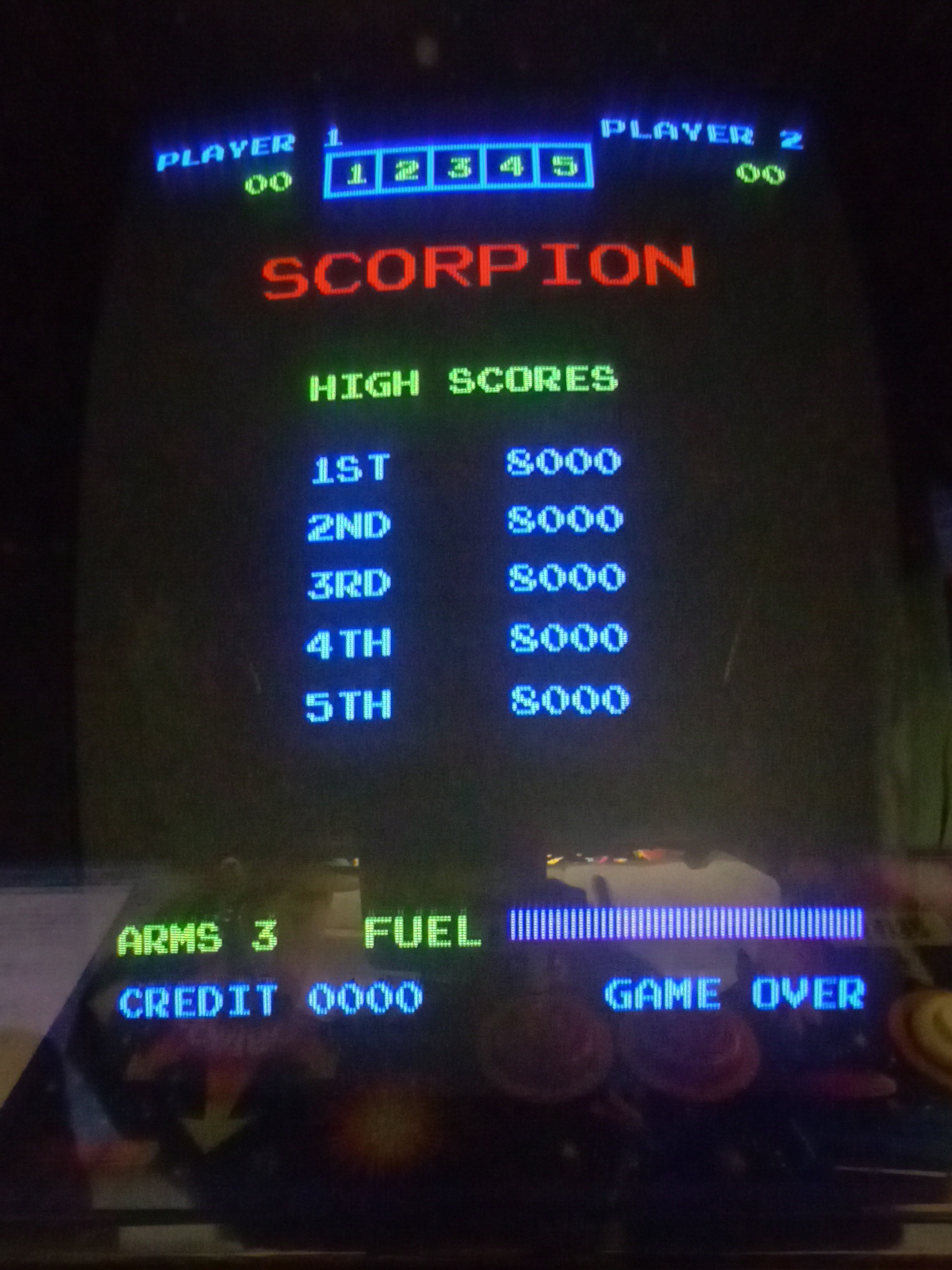

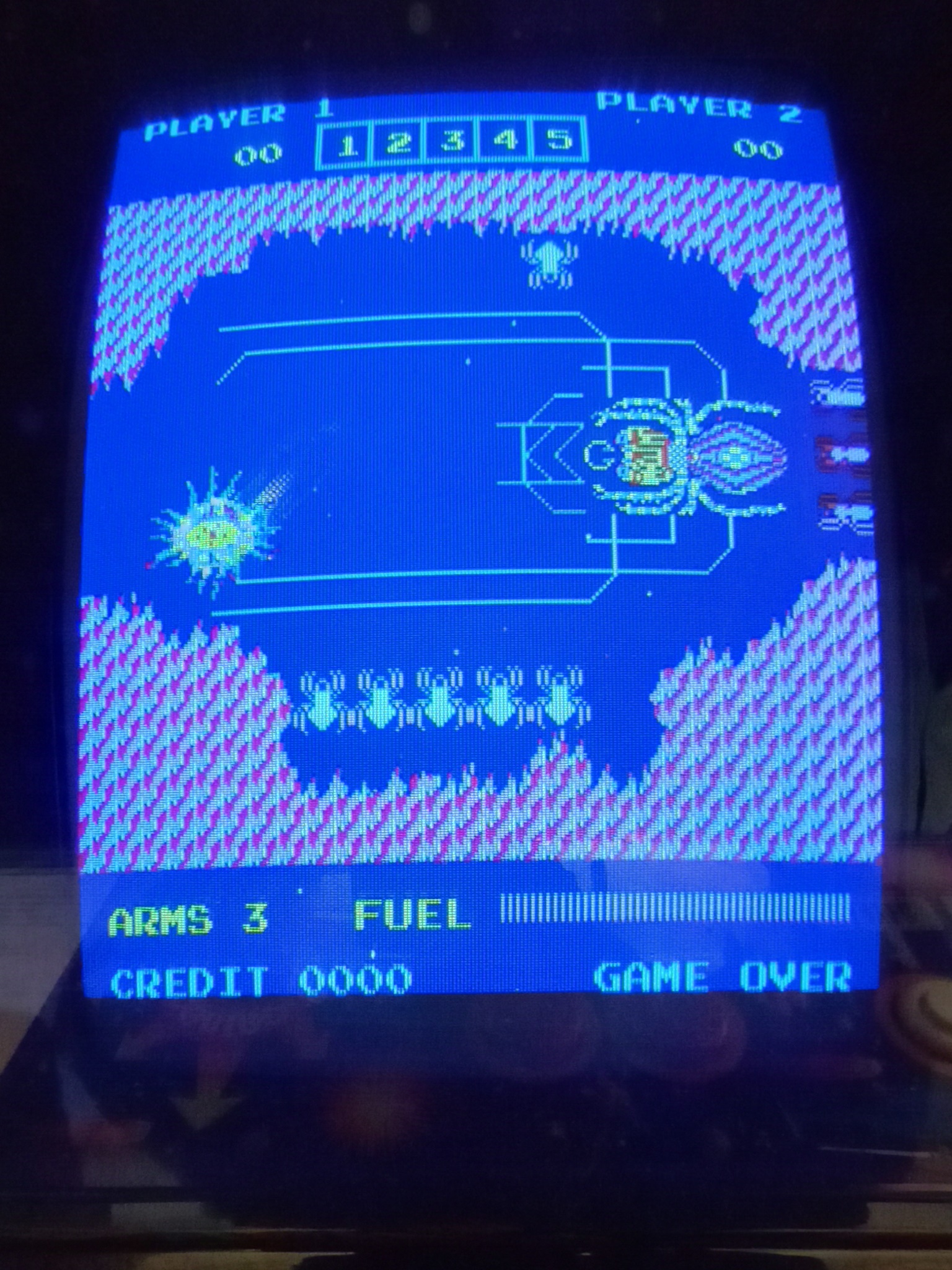

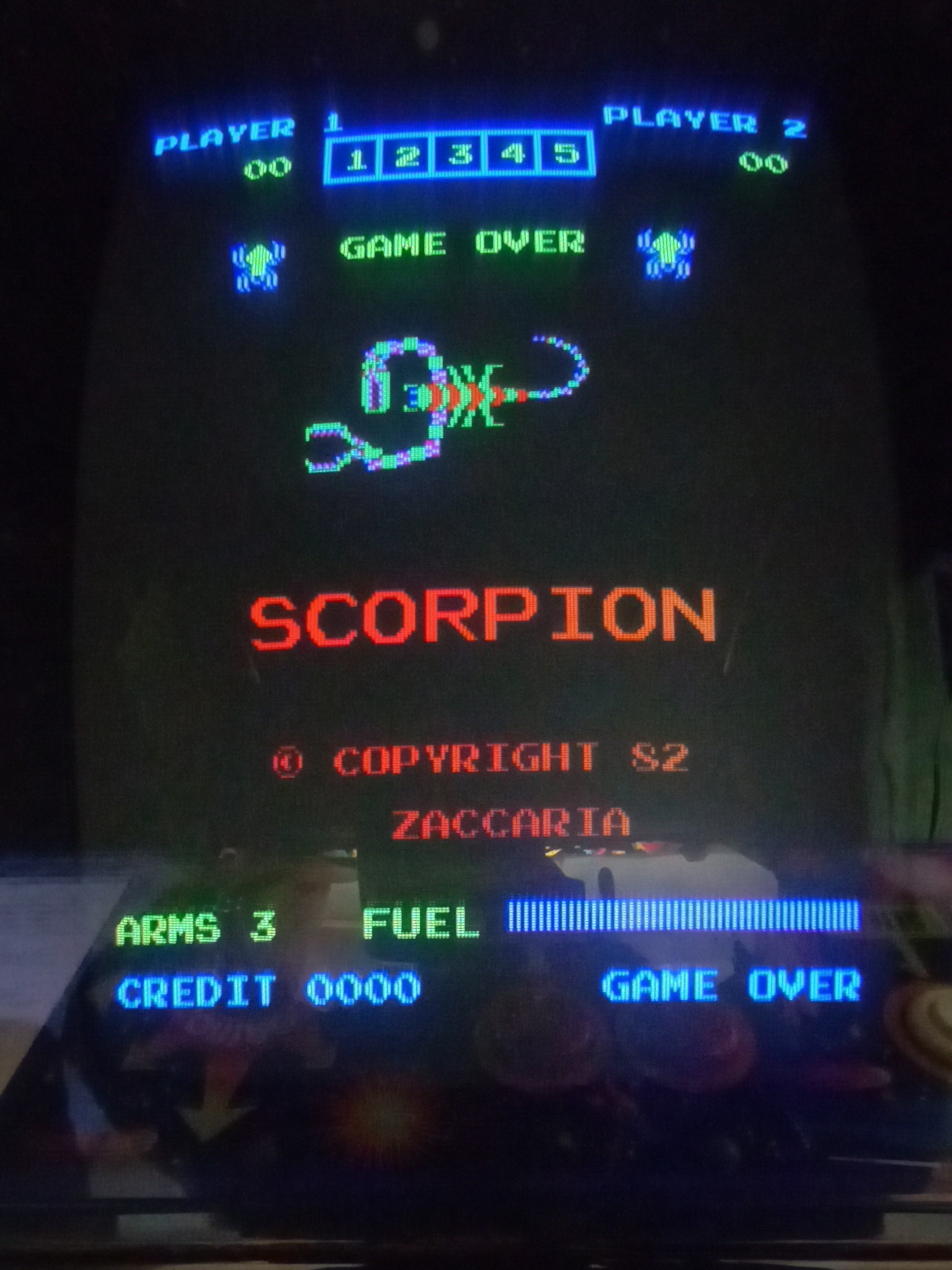

Zaccaria/IGR Scorpion - boss Zaccaria/IGR Scorpion - title Zaccaria/IGR Scorpion - score

Retesting the monitor chassis in the cabinet encountered no issues and the focus stayed sharp over several hours.
